SELECT A DIAGRAM

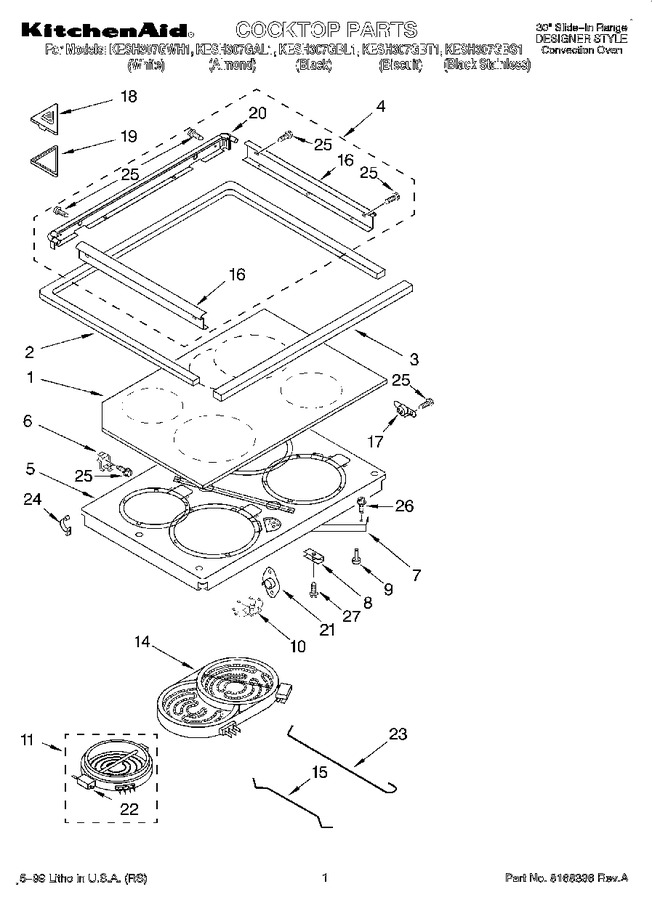

01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751755 | Cooktop, Ceran (white) |
|
- | |||||
| 1 | 9751756 | Cooktop, Ceran (almond) |
|
- | |||||
| 1 | 9751757 | Cooktop, Ceran (black) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9751478 | Gasket, Console |
|
- | |||||
| 4 | 9781832PC | Frame, Cooktop (biscuit) |
|
- | |||||
| 4 | 9781832PB | Frame, Cooktop (black) |
|
- | |||||
| 4 | 9781832PT | Frame, Cooktop (almond) |
|
- | |||||
| 4 | 9781832PW | Frame, Cooktop (white) |
|
- | |||||
| 5 | 9781548 | Support, Element |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 6 | 9752003 | Washer (2) |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (white (4)) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 9 | 238614 | Bumper, Rubber (black (4)) (Replaces: 9780771) |
|
$ 72.68 | |||||
| 10 | 9781497 | Hot Light |
|
- | |||||
| 11 | 9753476 | Element, Surface (1800w - Rf) |
|
- | |||||
| 11 | 8053605 | Element, Surface (2500w - Lf) |
|
- | |||||
| 11 | W10823699 | Element, Surface (1500 W - Lr) (Replaces: 8053604) |
|
Immediately | $ 145.67 | ||||
| 14 | 9753477 | Dual Element, Rr |
|
- | |||||
| 15 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 16 | 9781828PW | Trim, Side Frame (white) |
|
- | |||||
| 16 | 9781828PC | Trim, Side Frame (biscuit) |
|
- | |||||
| 16 | 9781828PB | Trim, Side Frame (black) |
|
- | |||||
| 16 | 9781828PT | Trim, Side Frame (almond) |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent |
|
- | |||||
| 20 | 9781831PT | Trim, Rear (includes End Caps) (almond) |
|
- | |||||
| 20 | 9781831PW | Trim, Rear (includes End Caps) (white) |
|
- | |||||
| 20 | 9781831PC | Trim, Rear (includes End Caps) (biscuit) |
|
- | |||||
| 20 | 9781831PB | Trim, Rear Frame (incls. End Caps) (black) |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 22 | 8053620 | Limiter, Temp (2500w - Lf) |
|
- | |||||
| 22 | 3169345 | Limiter, Temp (1800w - Rf) |
|
- | |||||
| 22 | 8054014 | Limiter, Temp (dual Element - Rr) |
|
- | |||||
| 23 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 24 | WP98997 | Clip, Wire (Replaces: 98997) |
|
$ 9.98 | |||||
| 25 | 9780265 | Screw, 10 X 3/8 |
|
- | |||||
| 26 | 9780272 | Screw, 10 X 3/4 |
|
- | |||||
| 27 | 9751871 | Screw |
|
- |
