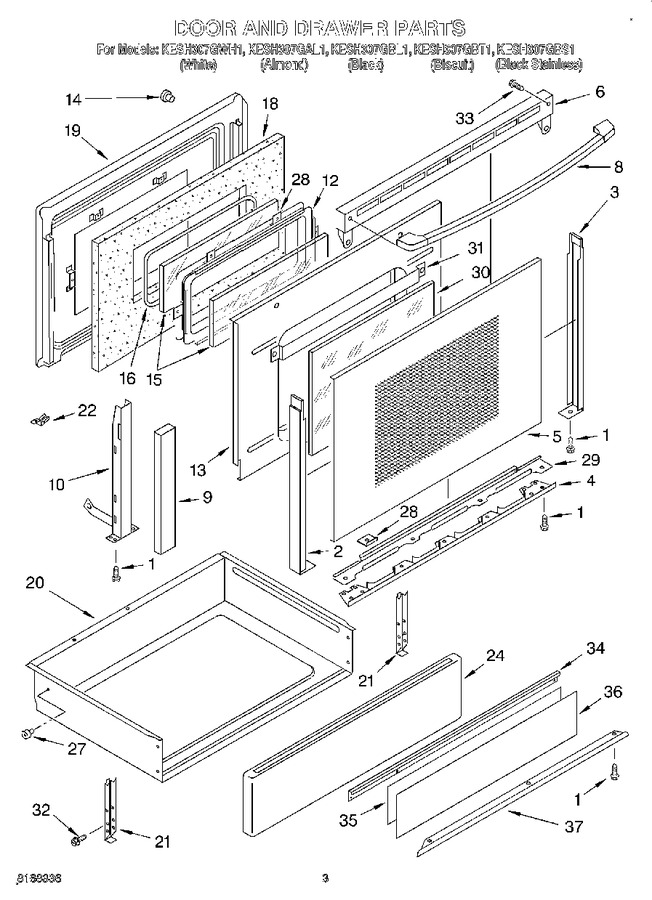

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
2	9750631PT		Trim, Door-left (almond)		Appelez-nous	-
2	9750631PB		Trim, Door-left (black)		Appelez-nous	-
2	9750631PC		Trim, Door-left (biscuit)		Appelez-nous	-
2	9750631PW		Trim, Door-left (white)		Appelez-nous	-
3	9750632PC		Trim, Door-right (biscuit)		Appelez-nous	-
3	9750632PB		Trim, Door-right (black)		Appelez-nous	-
3	9750632PT		Trim, Door-right (almond)		Appelez-nous	-
3	9750632PW		Trim, Door-right (white)		Appelez-nous	-
4	9781209PC		Trim, Door Bottom (biscuit)		Appelez-nous	-
4	9781209PW		Trim, Door Bottom (white)		Appelez-nous	-
4	9781209PT		Trim, Door Bottom (almond)		Appelez-nous	-
4	9781209PB		Trim, Door Bottom (black)		Appelez-nous	-
5	9781627PB		Glass, Door (black)				$ 153.46
5	9753378		Glass, Door (black Stainless)		Appelez-nous	-
5	9781627PC		Glass, Door (biscuit)		Appelez-nous	-
5	9781627PT		Glass, Door (almond)		Appelez-nous	-
5	9781627PW		Glass, Door (white)		Appelez-nous	-
6	9781490		Vent, Door (seal, Door Vent Side)		Appelez-nous	-
6	9753498GW		Vent, Door (white)		Appelez-nous	-
6	9753498GB		Vent, Door (black)		Appelez-nous	-
6	9753498GT		Vent, Door (almond)		Appelez-nous	-
6	9753498GC		Vent, Door (biscuit)		Appelez-nous	-
6	9781659		Vent, Door (gasket, Door Vent)		Appelez-nous	-
8	9780523PC		Handle, Door (biscuit)		Appelez-nous	-
8	9780523PW		Handle, Door (white)		Appelez-nous	-
8	9780523PT		Handle, Door (almond)		Appelez-nous	-
8	9780523PB		Handle, Door (black)		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
12	9781602		Frame, Window		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 72.68
15	WP9781593		Glass, Door (2)   (Replaces: 9781593)				$ 116.35
16	9781587		Seal, Glass		Appelez-nous	-
18	9781626		Insulation		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9750257		Drawer & Roller (black Stainless Model)		Appelez-nous	-
20	9780583		Drawer & Roller (white, Almond, Black, & Biscuit Models)		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	9750676		Retainer, Glass		Appelez-nous	-
24	9750168PT		Front, Drawer (almond)		Appelez-nous	-
24	WP90296		Front, Drawer (clip)   (Replaces: 90296)				$ 7.07
24	9750168PW		Front, Drawer (white)		Appelez-nous	-
24	9750569PB		Front, Drawer (black Stainless)		Appelez-nous	-
24	9750168PC		Front, Drawer (biscuit)		Appelez-nous	-
24	9750168PB		Front, Drawer (black)		Appelez-nous	-
27	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
28	9781502		Retainer, Glass		Appelez-nous	-
29	9781771		Deflector, Steam		Appelez-nous	-
30	9781592		Baffle, Glass		Appelez-nous	-
31	9750693		Channel, Heat		Appelez-nous	-
32	9780272		Screw, 10 X 1/2``		Appelez-nous	-
33	WPW10001180		Screw   (Replaces: 9781072)				$ 7.23
34	9750614PB		Trim, Upper		Appelez-nous	-
35	9753329		Spacer		Appelez-nous	-
36	9753293		Panel, Drawer		Appelez-nous	-
37	9750613PB		Trim, Lower		Appelez-nous	-
