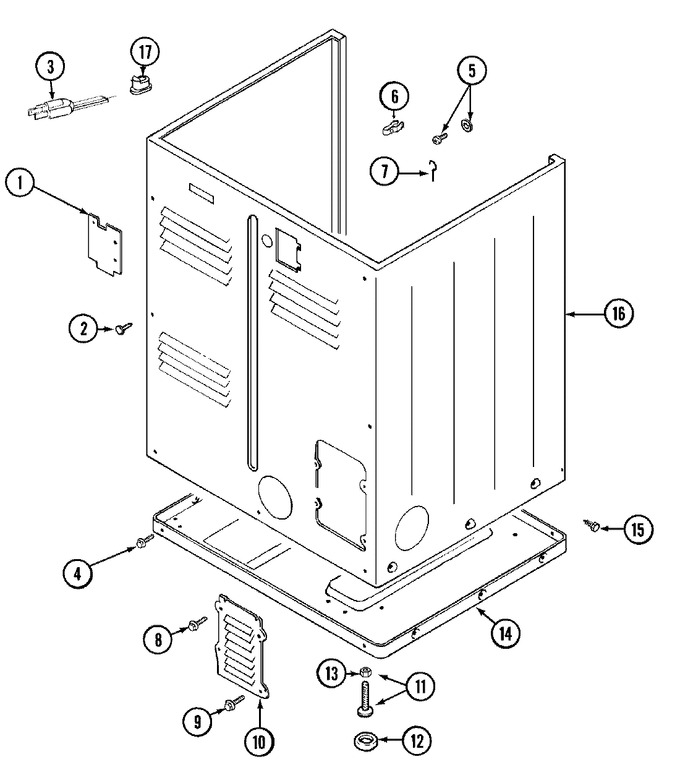

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y312905 | Cover, Terminal | A0 |
|
- | ||||
| 2 | Y313561 | Screw----na | A0 |
|
$ 5.27 | ||||
| 3 | WP90767 | Screw (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 3 | 33001285 | Cord, Power | A0 |
|
- | ||||
| 3 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | A0 |
|
$ 9.79 | ||||
| 4 | Y313561 | Screw----na | A0 |
|
$ 5.27 | ||||
| 4 | Y310632 | Screw | A0 |
|
- | ||||
| 5 | W10850756 | Screw & Washer Assy. (Replaces: 303846) | A0 |
|
$ 6.98 | ||||
| 6 | 301548 | Clamp, Ground (w/screw) | A0 |
|
- | ||||
| 7 | 204807 | Grnd.wire,supp.plte To Top Cvr | A0 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: Y313559) | A0 |
|
Immediately | $ 7.04 | |||
| 9 | WP90767 | Screw (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 10 | Y312951 | Cover, Access | A0 |
|
- | ||||
| 11 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | A0 |
|
$ 7.16 | ||||
| 12 | Y314137 | Foot, Rubber | A0 |
|
$ 14.08 | ||||
| 13 | WP62739 | Nut (Replaces: Y052740) | A0 |
|
$ 6.85 | ||||
| 14 | Y303361 | Base Assy. | A0 |
|
- | ||||
| 15 | 213007 | Screw, Cabinet | A0 |
|
$ 10.99 | ||||
| 16 | 33001159 | Cabinet (wht) | A0 |
|
- | ||||
| 17 | 210174 | Strain Relief | A0 |
|
- |
