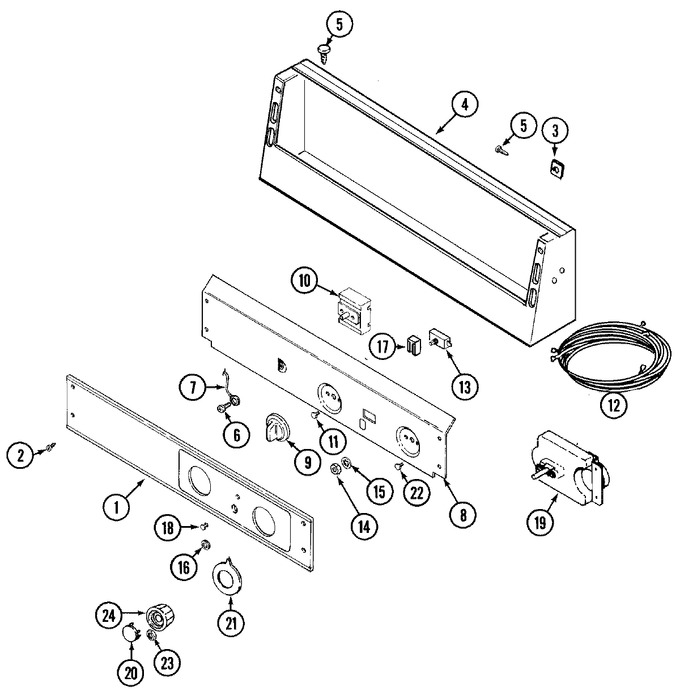

03 - Control Panel


04 - Door


05 - Gas Valve


06 - Motor Drive


07 - Tumbler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001021		Panel, Control	A0	Appelez-nous	-
2	WPW10131119		Screw, Torx   (Replaces: 215506)	A0			$ 6.26
3	215003		Fastener	A0	Appelez-nous	-
4	33001280		Console (wht)	A0	Appelez-nous	-
5	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
6	WP489399		Screw   (Replaces: 211252)	A0			$ 6.26
7	205810		Wire, Ground	A0	Appelez-nous	-
8	314911		Back-up Plate - White	A0	Appelez-nous	-
9	306938		Knob, Selector Switch	A0	Appelez-nous	-
10	WPW10327105		Switch, Cycle Selector   (Replaces: 307237)	A0			$ 145.49
11	WP488234		Screw   (Replaces: Y313588)	A0			$ 6.07
12	33001522		Harness, Wire (240-50)	16	Appelez-nous	-
12	308502		Harness, Wire	A0	Appelez-nous	-
13	WPW10149462		Switch, Push-to-start   (Replaces: 306940)	A0			$ 60.77
14	Y312706		Hex Nut On Switch	A0	Appelez-nous	-
15	WPW10139799		Lock Washer   (Replaces: 312751)	A0			$ 8.32
16	Y312702		Knurled Nut	A0			$ 18.18
17	W10139459		Light, Indicator   (Replaces: 22001365)	A0	Appelez-nous	-
18	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	A0		Immediately	$ 7.14
19	Y305758		Timer 240-50	A0	Appelez-nous	-
20	WPW10133501		Cap For Timer Knob   (Replaces: 314723)	A0			$ 54.76
21	314725		Timer Dial Indicator	A0	Appelez-nous	-
21	33001500		Skirt, Dial	12	Appelez-nous	-
22	WP488234		Screw   (Replaces: Y313588)	A0			$ 6.07
23	W10155650		Nut   (Replaces: 312273)	A0			$ 12.03
24	W11232017		Knob For Timer   (Replaces: 314724)	A0			$ 11.13
