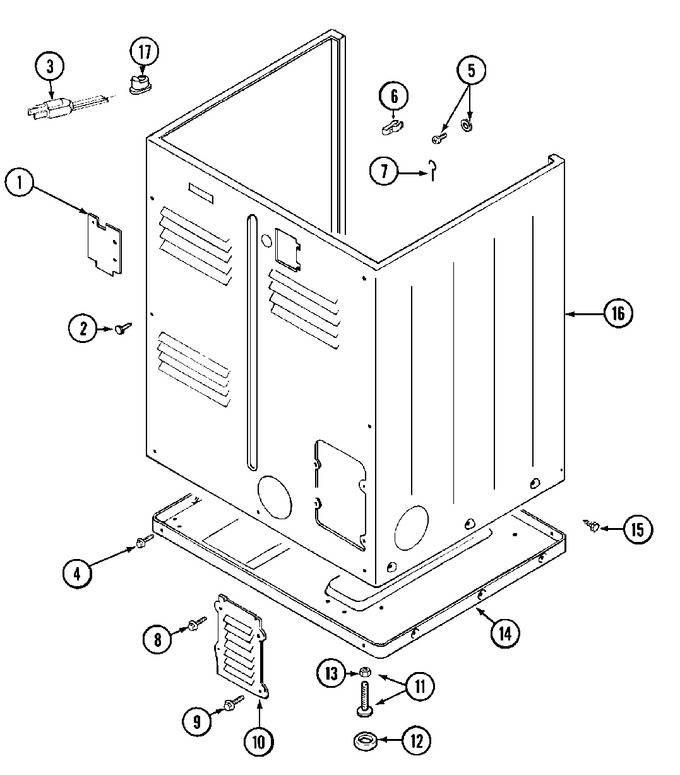

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y312905		Cover, Terminal	A0	Appelez-nous	-
002	Y313561		Screw, Terminal Cover	A0			$ 5.27
003	WP489128		Screw, Ground   (Replaces: 210186)	A0			$ 9.79
003	WP90767		Screw, Ground   (Replaces: 211294)	A0		Immediately	$ 7.04
003	33001246		Cord, Power	A0	Appelez-nous	-
004	Y313561		Screw, Cabinet	A0			$ 5.27
004	Y310632		Screw, Cabinet	A0	Appelez-nous	-
005	NLA		Screw & Washer Assembly	A0	Appelez-nous	-
006	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
007	204807		Wire, Ground	A0	Appelez-nous	-
008	WP90767		Screw, Access Cover   (Replaces: Y313559)	A0		Immediately	$ 7.04
009	WP90767		Screw, Access Cover   (Replaces: 211294)	A0		Immediately	$ 7.04
010	Y312951		Cover, Access	A0	Appelez-nous	-
011	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	A0			$ 7.16
012	Y314137		Foot, Rubber	A0			$ 14.08
013	WP62739		Nut, Leg   (Replaces: Y052740)	A0			$ 6.85
014	Y303361		Base Assembly	A0	Appelez-nous	-
015	213007		Screw, Cabinet Sides	A0			$ 10.99
016	NLA		Cabinet (wht)	A0	Appelez-nous	-
017	211881		Grommet, Cord	A0	Appelez-nous	-
