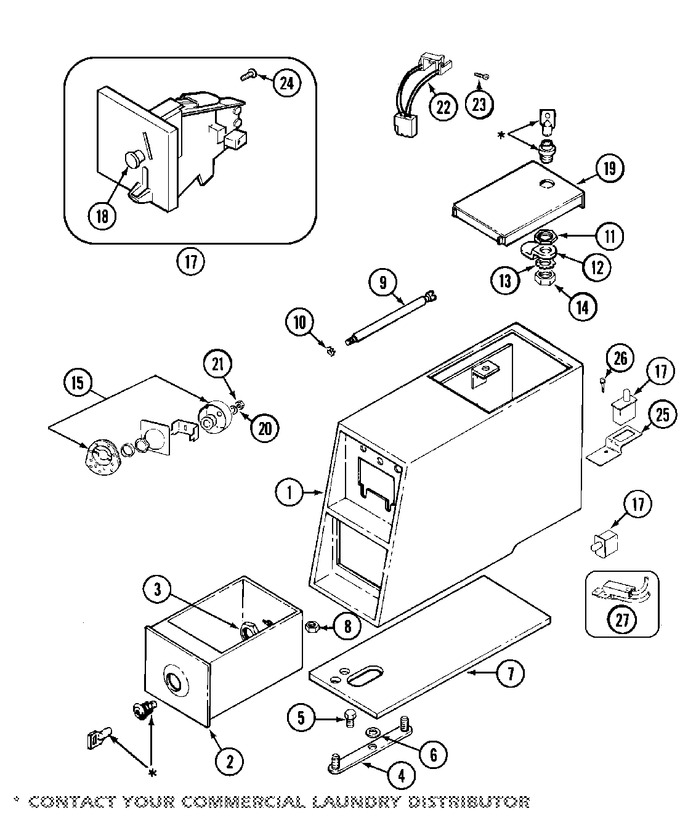

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22001407 | Case, Coin Meter (wht) | 10 |
|
- | ||||
| 001 | 22001408 | (alm) | 10 |
|
- | ||||
| 002 | 207912 | Box, Coin (wht) | 10 |
|
- | ||||
| 002 | 207912L | (alm) | 10 |
|
- | ||||
| 003 | W11395752 | Nut, Lock (Replaces: 212328) | 10 |
|
$ 11.74 | ||||
| 004 | NLA | Strap, Mounting | 10 |
|
- | ||||
| 005 | WP90767 | Screw, Mounting Strap (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 006 | 910309 | Washer, Strap Screw | 10 |
|
- | ||||
| 007 | 214660 | Gasket, Meter Case | 10 |
|
- | ||||
| 008 | WP62739 | Nut, Case Mounting (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 009 | 213035 | Bolt, Locking | 10 |
|
$ 5.84 | ||||
| 010 | 910181 | Lockwasher, Locking Bolt | 10 |
|
- | ||||
| 011 | W11395752 | Nut, Cam Lock (Replaces: 212328) | 10 |
|
$ 11.74 | ||||
| 012 | W11165684 | Cam, Lock (Replaces: 213750) | 10 |
|
$ 8.20 | ||||
| 013 | WPW10133264 | Lockwasher, Lock Cam (Replaces: 22001354) | 10 |
|
$ 125.12 | ||||
| 014 | 22001355 | Nut, Lock Cam | 10 |
|
- | ||||
| 015 | NLA | Lock Cam Assembly | 10 |
|
- | ||||
| 016 | WPW10131838 | Switch, Sensor (Replaces: 33001250) | 10 |
|
$ 21.52 | ||||
| 016 | 912012 | Screw, Sensor Switch | 10 |
|
- | ||||
| 017 | 207948 | Coin Drop Assembly | 10 |
|
- | ||||
| 017 | 22002143 | Faceplate | 10 |
|
- | ||||
| 017 | NLA | (can.) | 10 |
|
- | ||||
| 018 | 216200 | Button, Return | 10 |
|
- | ||||
| 019 | 204216 | Door, Access (wht) | 10 |
|
- | ||||
| 019 | 204216L | (alm) | 10 |
|
- | ||||
| 020 | WPW10133264 | Lockwasher, Lock Cam (Replaces: 22001354) | 10 |
|
$ 125.12 | ||||
| 021 | 216203 | Lockwasher, Double ``d`` | 10 |
|
- | ||||
| 021 | 22001355 | Nut, Lock Cam | 10 |
|
- | ||||
| 022 | 206799 | Optic Switch Assembly | 10 |
|
$ 113.64 | ||||
| 023 | WP3395530 | Screw, Switch Assembly (Replaces: 314665) | 10 |
|
$ 6.93 | ||||
| 024 | 216068 | Screw, Coin Drop | 10 |
|
- | ||||
| 025 | 22001404 | Bracket, Sensor Switch | 10 |
|
- | ||||
| 026 | WP90767 | Screw, Bracket (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 027 | 208045 | Harness, Wire (sensor Sw) | 10 |
|
- |
