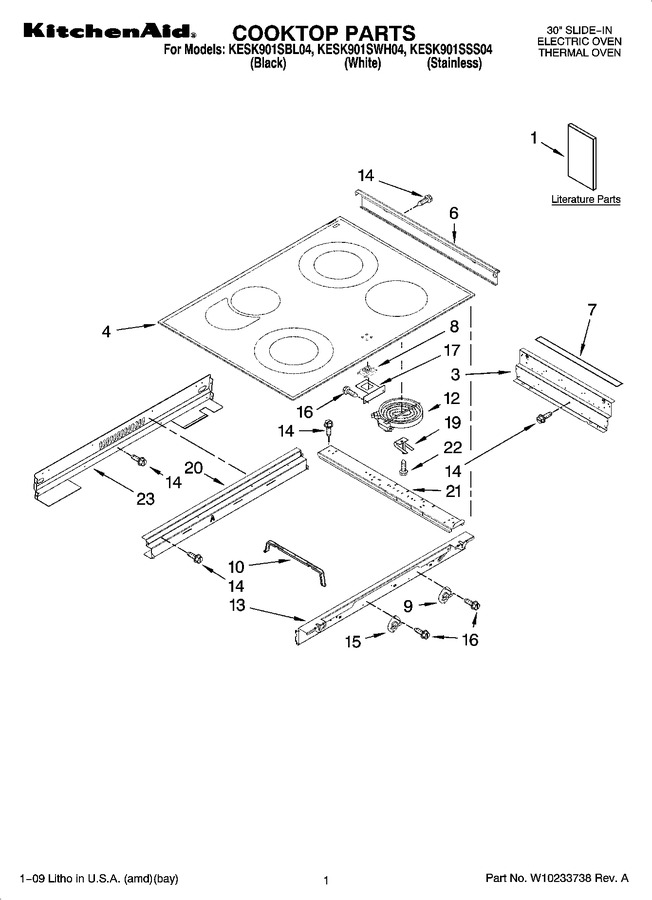

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10118260 | Installation Instructions |
|
- | |||||
| 1 | W10190622 | Use & Care Guide |
|
- | |||||
| 1 | W10189732 | Tech Sheet |
|
- | |||||
| 1 | 9763467 | Easy Set Guide |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 3 | 9761422 | Frame, Cooktop Side |
|
$ 67.87 | |||||
| 4 | W10109860 | Cooktop (white) |
|
- | |||||
| 4 | W10285078 | Cooktop (black/stainless) (Replaces: W10109850) |
|
$ 854.12 | |||||
| 6 | W10110682 | Trim, Cooktop Left (black) |
|
$ 189.56 | |||||
| 6 | W10110685 | Trim, Cooktop Right (white) |
|
$ 200.89 | |||||
| 6 | W10110687 | Trim, Cooktop Right (black) |
|
$ 187.68 | |||||
| 6 | W10140550 | Trim, Cooktop Right (stainless) |
|
$ 116.16 | |||||
| 6 | W10140549 | Trim, Cooktop Left (stainless) |
|
$ 121.97 | |||||
| 6 | W10110680 | Trim, Cooktop Left (white) |
|
$ 191.25 | |||||
| 7 | W10076030 | Gasket (2) |
|
$ 78.51 | |||||
| 8 | 8523739 | Light, Indicator |
|
$ 120.71 | |||||
| 9 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 12 | W10823699 | Element, Surface (lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 12 | W10823697 | Element, Surface (rr) (Replaces: 8523694) |
|
$ 326.21 | |||||
| 12 | W10823698 | Element, Surface (rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 12 | W10823692 | Element, Surface (lf) (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 13 | 9761423 | Frame, Cooktop Front |
|
$ 43.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 341196 | Thermostat |
|
$ 33.17 | |||||
| 16 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 17 | 9758799 | Bracket, Indicator Lamp |
|
$ 47.83 | |||||
| 19 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 20 | 9761768 | Frame, Cooktop Rear |
|
$ 73.35 | |||||
| 21 | 9763517 | Rail, Element (3) |
|
$ 62.80 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 23 | 9761724 | Cover, Cooktop Rear |
|
$ 35.73 |
