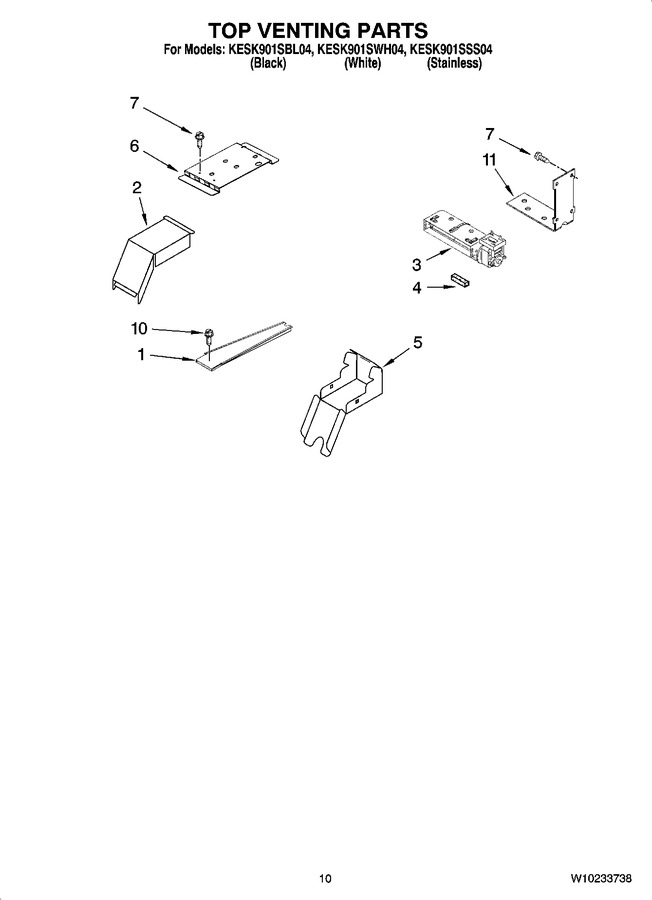

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 90.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 13.30 | |||||
| 3 | W10810687 | Blower (Replaces: 9759320) |
|
Immediately | $ 309.01 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 5 | 4455177 | Elbow, Vent- Bottom |
|
$ 9.77 | |||||
| 6 | W10143041 | Bracket, Terminal Box |
|
- | |||||
| 7 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 10 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 11 | WP4455352 | Bracket, Blower (Replaces: 4455352) |
|
$ 32.15 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| W10137679 | Harness, Main |
|
- | ||||||
| W10118727 | Harness, Switch |
|
$ 77.77 | ||||||
| 9762921 | Harness,communication |
|
$ 126.17 | ||||||
| W11209404 | Connector, Flex (Replaces: W10155291) |
|
$ 102.00 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| 9763481 | Harness, Ground Strap |
|
$ 78.41 | ||||||
| W10137676 | Cooktop, Electric Switch |
|
- | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| W10177363 | Grommet, Flex |
|
- | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | |||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| W11447673 | Anti-tip Assembly (Replaces: 9782676) |
|
Immediately | $ 28.64 | |||||
| W10113902A | Filler, Counter Top (black) |
|
Immediately | $ 102.87 | |||||
| W10113903A | Filler, Counter Top (white) |
|
$ 109.84 | ||||||
| W10113901A | Filler, Counter Top (stainless) |
|
$ 118.82 |
