New Model Search:

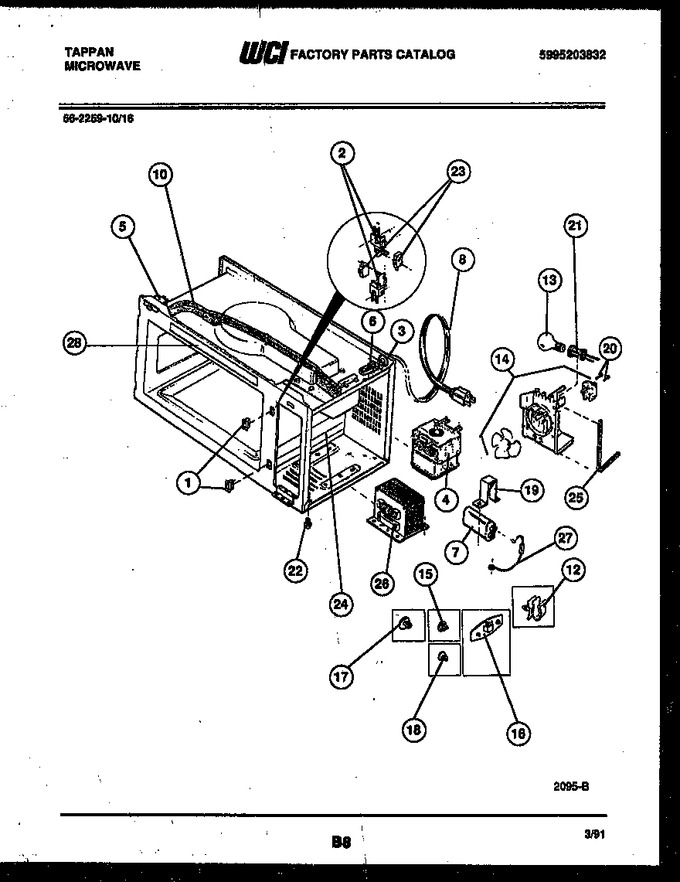

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212767 | Bezel Latch (2) |
|
- | |||||
| 2 | 5303011556 | Bracket-switch (2) |
|
- | |||||
| 3 | 5303212769 | Bushing-strain Relief/fuse Holder |
|
- | |||||
| 4 | 5303206781 | Magnetron |
|
- | |||||
| 5 | 5303201602 | Switch-monitor |
|
- | |||||
| 6 | 5303011670 | Fuse |
|
- | |||||
| 7 | 5303212773 | Capacitor |
|
- | |||||
| 8 | 5303212774 | Cord-power |
|
- | |||||
| 10 | 5303212783 | Seal, Foam |
|
- | |||||
| 12 | 5303212787 | Clamp, Cable |
|
- |
