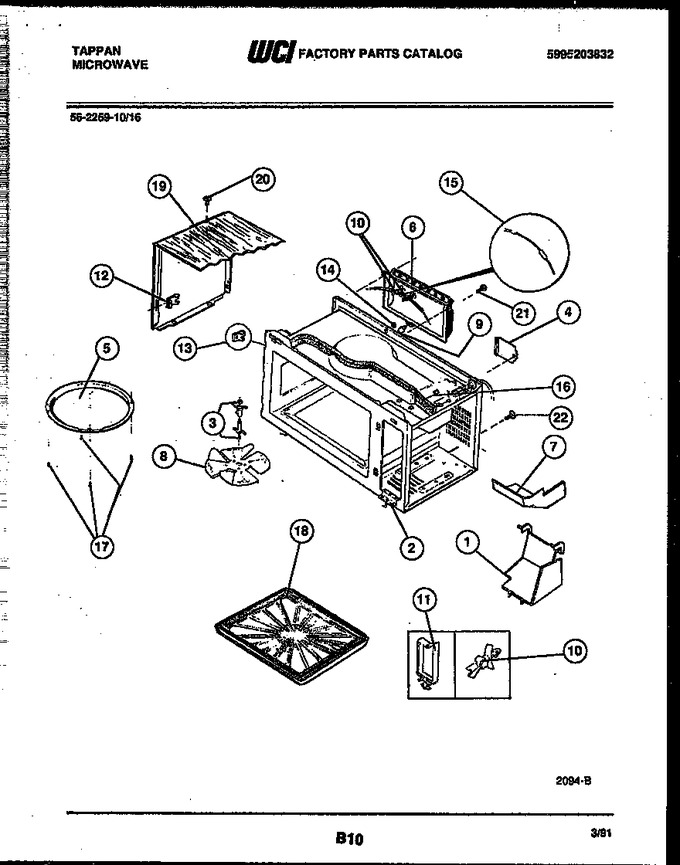

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212766 | Baffle, Air |
|
- | |||||
| 2 | 5303011555 | Bracket-control Panel Support |
|
- | |||||
| 3 | 5303922010 | Collar-stirrer-(includes Support, Collar And Washer) |
|
- | |||||
| 4 | 5303212775 | Cover-light |
|
- | |||||
| 5 | 5303200541 | Cover-stirrer |
|
- | |||||
| 6 | 5303212780 | Duct-air-exhaust |
|
- | |||||
| 7 | 5303212784 | Duct-air-cavity |
|
- | |||||
| 8 | 5303202397 | Fan-stirrer |
|
- | |||||
| 9 | 5303091555 | Plug Button |
|
- | |||||
| 10 | 5303212788 | Support-thermal Protector (2) |
|
- | |||||
| 11 | 5308037677 | Clip, Wires, (3) |
|
- | |||||
| 12 | 5303012322 | Clip, Wrapper, (2) |
|
- | |||||
| 13 | 5303212801 | Lamp-120v |
|
$ 53.13 | |||||
| 13 | 3203010 | Clip, Hinge, (3) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 14 | 5303922053 | Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade |
|
- | |||||
| 14 | 5303212795 | Grommet, Split |
|
- | |||||
| 15 | 5303201365 | Plug-button (probe) |
|
- | |||||
| 15 | 5303212800 | Harness-fire Protector |
|
- | |||||
| 16 | 5303212803 | Nut, Fan Duct |
|
$ 2.10 | |||||
| 16 | 5303013626 | Plug-button, Browner, (2) |
|
- | |||||
| 17 | 5303013807 | Rivet-cover Stirrer (4) |
|
- | |||||
| 17 | 5308037664 | Plug Button-rack (4) |
|
- | |||||
| 18 | 5303091188 | Tray-oven |
|
- | |||||
| 18 | 5308037665 | Plug-button Tray (2) |
|
- | |||||
| 19 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 19 | 5303212812 | Wrapper-wood Grain |
|
- | |||||
| 20 | 5303015230 | Plug-button Wood Grain (2) |
|
- | |||||
| 20 | 5308014502 | Screw-fan Motor (2) |
|
- | |||||
| 21 | 5303212810 | Socket-lamp |
|
- | |||||
| 21 | 5303271024 | Screw-tamper Proof (2) |
|
- | |||||
| 22 | 5303014097 | Spacer, Foot, (4) |
|
- | |||||
| 22 | 5303269846 | Rivet |
|
- | |||||
| 23 | 5303203636 | Switch, Interlock |
|
- | |||||
| 24 | 5303212845 | Tape-foam Seal Cut To Size |
|
- | |||||
| 25 | 5303017864 | Tape-foam Seal Cut To Size |
|
- | |||||
| 26 | 5303212811 | Transformer |
|
- | |||||
| 27 | 5303212799 | Harness-diode |
|
- | |||||
| 28 | 5303018849 | Label Cooking Guide |
|
- | |||||
| *44445 | 5308010077 | Clip-purselock-attached To Fan Duct |
|
- | |||||
| *44445 | 5303017865 | Tape-foam Seal Wrapper-right Front Cut To Size |
|
- | |||||
| *44445 | 5303212796 | Harness-main |
|
- | |||||
| 19A | 5303091100 | Screw-wrapper (19) (non-illustrated) |
|
- | |||||
| 19B | 5303212809 | Shield-oven Light-mylar (non-illustrated) |
|
- | |||||
| 19C | 5303203124 | Paint-white Touch Up (non-illustrated) |
|
- | |||||
| 19D | 5303269631 | Hang Kit (non-illustrated) |
|
- |
