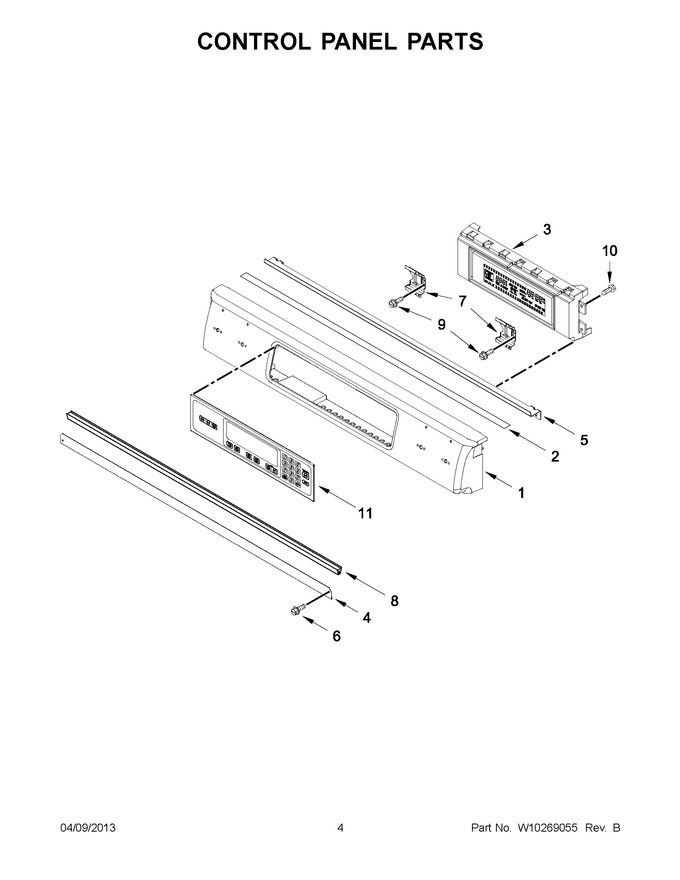

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Internal Oven Parts
05 - Top Venting Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156272 | Panel, Control (stainless) |
|
$ 190.83 | |||||
| 1 | W10117033 | Panel, Control (black) |
|
- | |||||
| 1 | W10117034 | Panel, Control (white) |
|
- | |||||
| 2 | W10110246 | Gasket, Console |
|
$ 123.31 | |||||
| 3 | W10181439 | Control, Electronic |
|
$ 483.37 | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | W10117524 | Bracket, Gasket |
|
$ 36.94 | |||||
| 6 | WP3179559 | Screw (Replaces: 3179559) |
|
$ 61.32 | |||||
| 7 | 9761745 | Bracket, Thermostat |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent |
|
$ 77.94 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | 9780271 | Screw |
|
- | |||||
| 11 | WP9761566 | Assembly, Glass Touchpad (Replaces: 9761566) |
|
Immediately | $ 405.23 |
