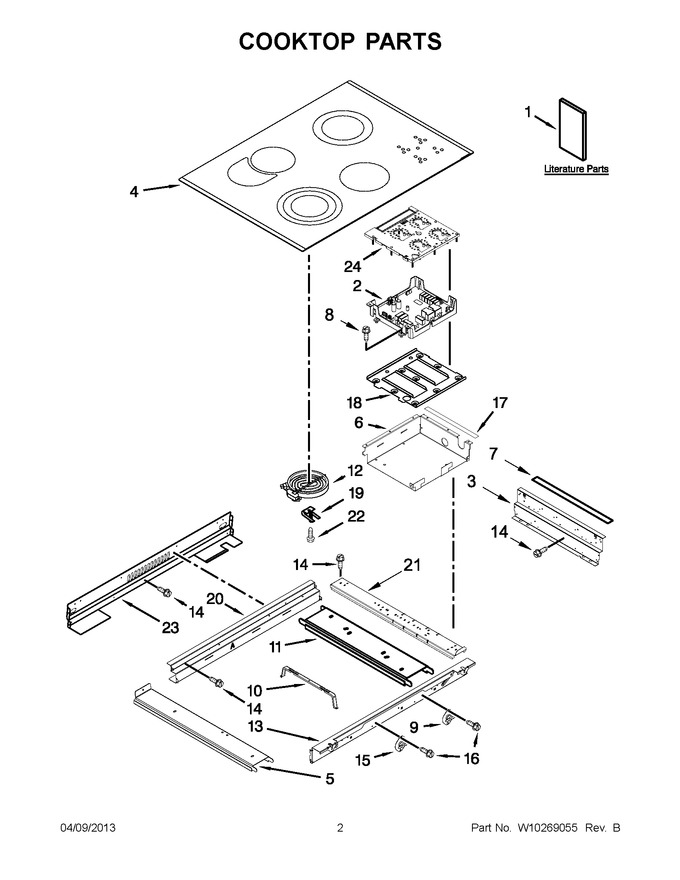

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts


04 - Internal Oven Parts


05 - Top Venting Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9763467		Guide Easy Set		Appelez-nous	-
1	W10112131		Tech Sheet		Appelez-nous	-
1	W10118260		Instructions, Installation		Appelez-nous	-
1	9757680		Instructions, Anti-tip		Appelez-nous	-
1	W10190622		Guide, Use & Care		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W10181438		Manager, Appliance				$ 375.72
3	9761422		Frame, Cooktop Side				$ 67.87
4	W10110273		Cooktop (black)		Appelez-nous	-
4	W10110272		Cooktop (white)		Appelez-nous	-
5	9757824		Rail, Element Side				$ 60.29
6	9761638		Box, Tap Touch		Appelez-nous	-
7	W10076030		Gasket				$ 78.51
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP9759944		Thermostat, 70c   (Replaces: 9759944)			Immediately	$ 121.57
10	9756821		Support, Wiring		Appelez-nous	-
11	9757825		Rail, Element Center		Appelez-nous	-
12	W10203295		Element (1000w) (left Rear)				$ 285.64
12	WP4453907		Element (1500w) (right Front)   (Replaces: 4453907)			Immediately	$ 256.28
12	4453910		Element (1900w) (right Rear)				$ 142.33
12	4453908		Element (2300w) (left Front)				$ 155.12
13	9761423		Frame, Front				$ 43.33
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	341196		Thermostat, 96c				$ 33.17
16	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
17	9761663		Seal, Heat				$ 56.53
18	9757815		Support, Module				$ 43.94
19	9759094		Spring Locator				$ 6.34
20	9761768		Frame, Cooktop Rear				$ 73.35
21	9763517		Rail, Element				$ 62.80
22	WP486754		Screw   (Replaces: 246119)				$ 6.75
23	9761723		Cover, Cooktop Rear				$ 65.23
24	WP9757063		Module, Tap Touch   (Replaces: 9757063)			Immediately	$ 374.99
