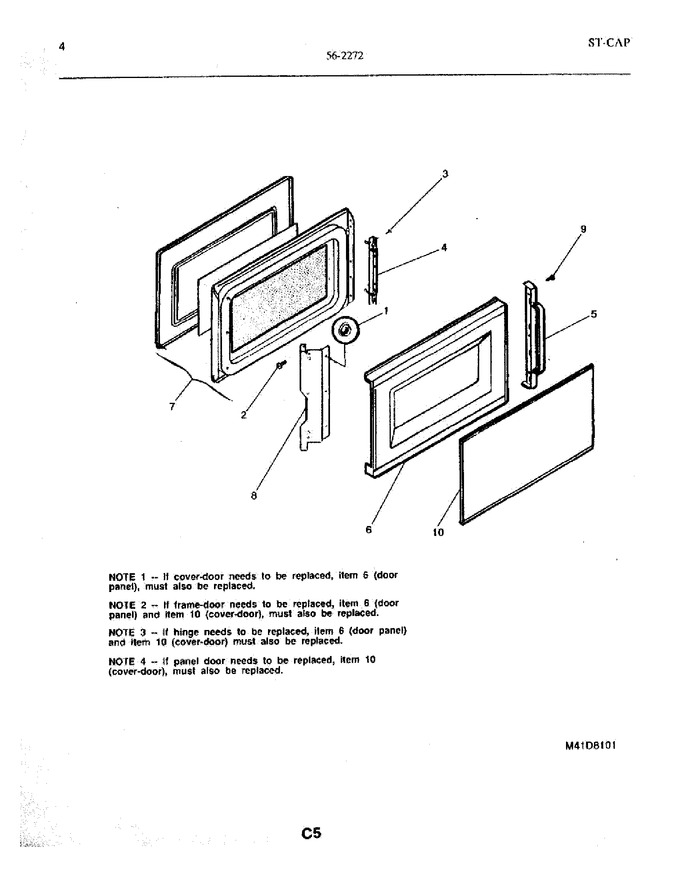

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303013281 | Nut, Hex, 8-32, Hinge |
|
- | |||||
| 2 | 5303013882 | Screw, Cr Flat Head, 8 (a) X 1/2, Hinge |
|
- | |||||
| 3 | 5303013960 | Screw, Spcl Low Pf, 8-32 X 5/8, Angle |
|
- | |||||
| 4 | 5303283839 | Angle-hook Mtg Assy |
|
- | |||||
| 5 | 5303275281 | Handle-door |
|
- | |||||
| 6 | 5303275283 | Panel-door (note 4) |
|
- | |||||
| 7 | 5303922051 | Frame-door, Black, Service(note 2) |
|
- | |||||
| 8 | 5303279373 | Hinge-door, Black(note 3) |
|
- | |||||
| 9 | 5303051818 | Screw-handle, 8-18 X 1/2 |
|
- | |||||
| 10 | 5303922104 | Cover-door, (includes Tape)(note 1) |
|
- |
