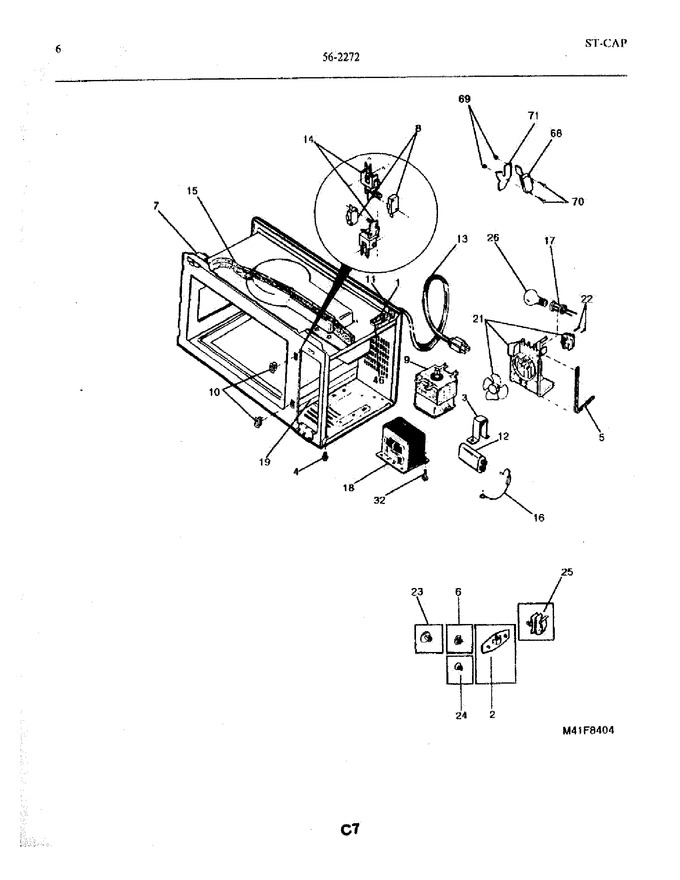

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308037723		Fuse, 15 Amp		Appelez-nous	-
2	5303013626		Plug Button (browner)		Appelez-nous	-
3	5303013771		Retainer-capacitor		Appelez-nous	-
4	5303014097		Spacer, Foot		Appelez-nous	-
5	5303017864		Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size		Appelez-nous	-
6	5303201365		Plug, Button, White. Probe		Appelez-nous	-
7	5303201602		Switch, Monitor, Sensor		Appelez-nous	-
8	5303203636		Switch, Interlock		Appelez-nous	-
9	5303206781		Magnetron		Appelez-nous	-
10	5303212767		Bezel-latch		Appelez-nous	-
11	5303212769		Bushing-fuse Holder, Strain Relief		Appelez-nous	-
12	5303212773		Capacitor		Appelez-nous	-
13	317005402		Cord-electric Service, Canadian		Appelez-nous	-
14	5303280317		Bracket-switch		Appelez-nous	-
15	5303212783		Seal, Foam		Appelez-nous	-
16	5303212799		Harness And Diode, Hv		Appelez-nous	-
17	5303212810		Socket-light/lamp, Oven, 120 V		Appelez-nous	-
18	5303212811		Transformer, 120v		Appelez-nous	-
19	5303212845		Seal, Foam		Appelez-nous	-
21	5303922053		Motor-fan 120v (includes Motor-fan Duct-fan Blade In.8kit)		Appelez-nous	-
22	5303013273		Nut, Hex, 6-32		Appelez-nous	-
22	5308010077		Clip-purselock, Fan Duct		Appelez-nous	-
22	5308014502		Screw, 6-32 X 1-1/8, Fan Motor		Appelez-nous	-
23	5308037664		Plug-button, White, Rack		Appelez-nous	-
24	5308037665		Plug-button, White, Tray		Appelez-nous	-
25	5303212787		Clamp, Cable		Appelez-nous	-
26	5303272172		Lamp, 25 W, 120 V		Appelez-nous	-
32	5303013944		Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer		Appelez-nous	-
68	5303269913		Switch-monitor		Appelez-nous	-
69	5303091072		Nut,hex,4-40,brkt Monitor Sw		Appelez-nous	-
70	5303203212		Screw,cr Round Hd,4-40(23) X 5/8,brkt Monitor Sw		Appelez-nous	-
71	5308037795		Bracket-monitor Sw		Appelez-nous	-
	5303273519		Harness-wiring, Main		Appelez-nous	-
