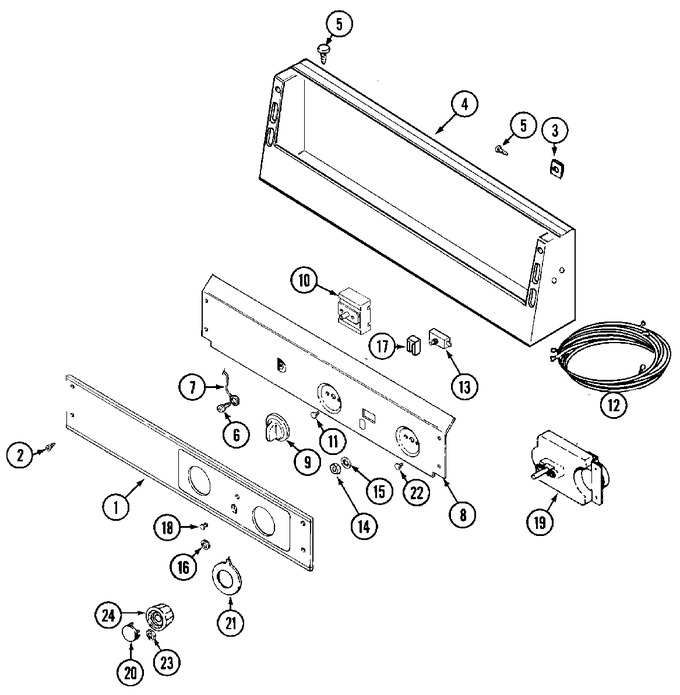

01 - Control Panel
02 - Cabinet-front
03 - Door
04 - Cabinet-rear
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33001967 | Panel, Control | 10 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 003 | 215003 | Clip, Screw | 10 |
|
- | ||||
| 004 | 22003101 | Console (wht) | 10 |
|
- | ||||
| 004 | 33001957 | Console (wht) | 10 |
|
- | ||||
| 005 | WP489128 | Screw, Console (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 006 | WP489399 | Screw, Ground Wire (Replaces: 211252) | 10 |
|
$ 6.26 | ||||
| 007 | 205810 | Wire, Ground | 10 |
|
- | ||||
| 008 | 33001968 | Bracket, Back (wht) | 10 |
|
- | ||||
| 008 | 33002524 | Bracket, Back (wht) | 10 |
|
- | ||||
| 009 | 306938 | Knob, Selector Switch | 10 |
|
- | ||||
| 010 | WPW10327105 | Switch, Cycle Selector (Replaces: 307237) | 10 |
|
$ 145.49 | ||||
| 010 | 33002276 | Switch, Cycle Selector | 10 |
|
- | ||||
| 011 | WP488234 | Screw, Selector Switch (Replaces: Y313588) | 10 |
|
$ 6.07 | ||||
| 012 | 33001971 | Wire Harness, Main | 10 |
|
- | ||||
| 012 | 33001972 | Wire Harness, Main | 10 |
|
- | ||||
| 012 | 33002246 | Wire Harness, Main | 19 |
|
- | ||||
| 012 | 33002247 | Wire Harness, Main | 10 |
|
- | ||||
| 012 | 33002773 | Wire Harness, Main | 10 |
|
- | ||||
| 013 | WPW10149462 | Switch, Push-to-start (Replaces: 306940) | 10 |
|
$ 60.77 | ||||
| 014 | Y312706 | Nut, Switch | 10 |
|
- | ||||
| 015 | WPW10139799 | Washer, Switch (Replaces: 312751) | 10 |
|
$ 8.32 | ||||
| 016 | Y312702 | Nut, Knurled | 10 |
|
$ 18.18 | ||||
| 017 | 204075 | Light, Indicator | 10 |
|
- | ||||
| 017 | W10139459 | Light, Indicator (Replaces: 22001365) | 10 |
|
- | ||||
| 018 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | 10 |
|
Immediately | $ 7.14 | |||
| 019 | 305214 | Timer | 10 |
|
$ 152.65 | ||||
| 019 | Y305758 | Timer 240-50 | 10 |
|
- | ||||
| 020 | WPW10133501 | Cap, Timer Knob (Replaces: 314723) | 10 |
|
$ 54.76 | ||||
| 021 | 33001500 | Skirt, Timer Dial | 10 |
|
- | ||||
| 022 | WP488234 | Screw, Timer (Replaces: Y313588) | 10 |
|
$ 6.07 | ||||
| 023 | W10155650 | Nut, Timer Knob (Replaces: 312273) | 10 |
|
$ 12.03 | ||||
| 024 | W11232017 | Knob, Timer (Replaces: 314724) | 10 |
|
$ 11.13 | ||||
| 025 | 33002712 | Manual, Owners | 10 |
|
- |
