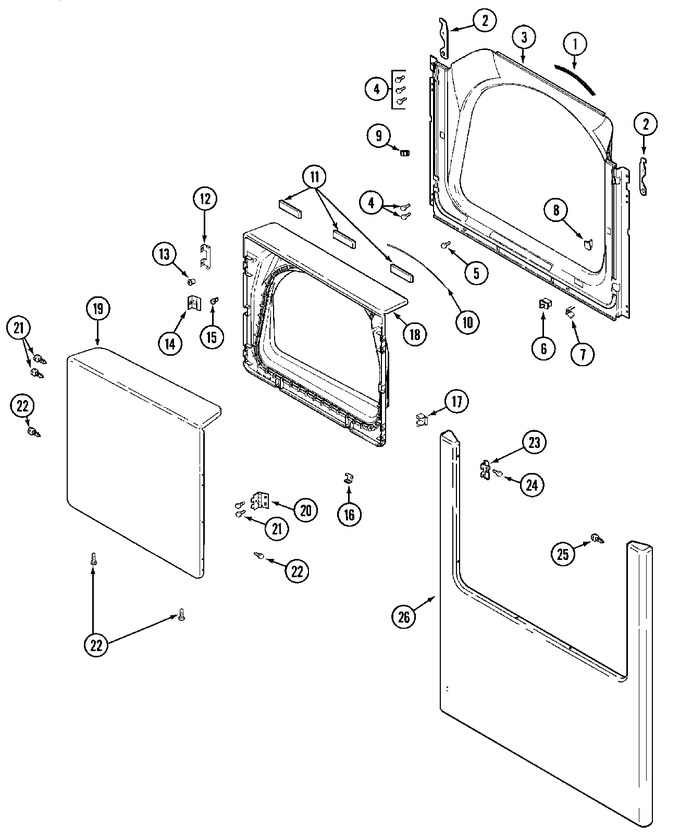

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Cabinet-front
03 - Door
04 - Cabinet-rear
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33001767 | Seal, Shroud | 10 |
|
$ 25.05 | ||||
| 002 | 22002247 | Hook, Security | 10 |
|
- | ||||
| 002 | 33002597 | Hook, Security | 10 |
|
$ 28.59 | ||||
| 003 | 33001900 | Shroud (wht) | 10 |
|
- | ||||
| 003 | 33001954 | (wht) | 10 |
|
- | ||||
| 004 | W11573574 | Screw, Tumbler Front & Shroud (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 005 | 33001768 | Screw, Shroud & Outlet Duct | 10 |
|
- | ||||
| 006 | W10169313 | Switch, Door (Replaces: 33001509) | 10 |
|
Immediately | $ 29.18 | |||
| 006 | 33002167 | Switch, Door | 10 |
|
- | ||||
| 006 | 33002239 | Switch, Door | 10 |
|
$ 23.77 | ||||
| 007 | 33001760 | Bracket, Hinge | 10 |
|
- | ||||
| 008 | NLA | Plug, Door Catch | 10 |
|
- | ||||
| 009 | LA-1003 | Catch, Door (female) (Replaces: Y304578) | 10 |
|
Immediately | $ 24.51 | |||
| 010 | WP33002094 | Seal, Door (Replaces: 33002094) | 10 |
|
Immediately | $ 113.69 | |||
| 011 | 33001268 | Pad, Door | 10 |
|
- | ||||
| 012 | 22002038 | Clip, Door (double) | 10 |
|
- | ||||
| 013 | 33001771 | Bushing, Inner Door | 10 |
|
- | ||||
| 014 | WP33001793 | Bracket, Strike (Replaces: 33001793) | 10 |
|
$ 7.43 | ||||
| 015 | 33001761 | Strike, Door (male) | 10 |
|
$ 5.84 | ||||
| 016 | 22002039 | Clip, Door (single) | 10 |
|
$ 8.15 | ||||
| 017 | 33001763 | Plug, Inner Door | 10 |
|
$ 6.90 | ||||
| 018 | 33001899 | Door, Inner (wht) | 10 |
|
$ 206.82 | ||||
| 019 | 33001904 | Door, Outer (wht) | 10 |
|
- | ||||
| 020 | WP33001759 | Hinge, Door (Replaces: 33001759) | 10 |
|
$ 69.86 | ||||
| 021 | WP98006631 | Screw, Hinge (Replaces: 22002062) | 10 |
|
$ 6.26 | ||||
| 022 | 22002063 | Screw No.8-18ab Wafer Hd | 10 |
|
$ 5.48 | ||||
| 023 | 33001764 | Cover, Hinge Hole (wht) | 10 |
|
$ 36.41 | ||||
| 024 | WP33001787 | Screw, Hinge Hole Cover (Replaces: 33001846) | 10 |
|
$ 10.45 | ||||
| 025 | 22002243 | Screw, Hinge Bracket | 10 |
|
- | ||||
| 025 | 22002244 | Clip, Grounding | 10 |
|
- | ||||
| 026 | 213280 | Fastener, Front Panel | 10 |
|
- | ||||
| 026 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 026 | 33001901 | Panel, Front (wht) | 10 |
|
- |
