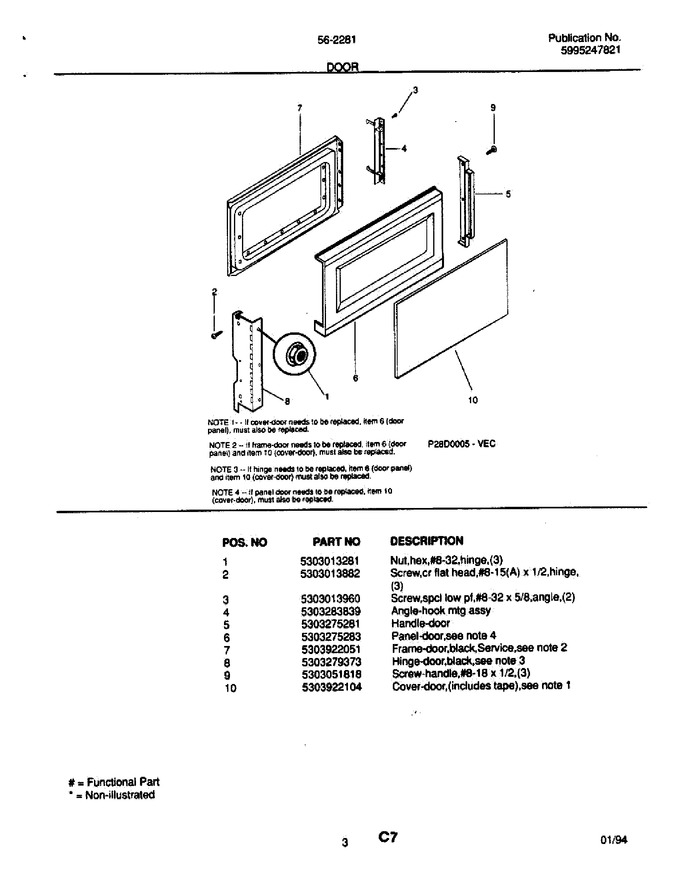

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303013281		Nut, Hex, 8-32, Hinge		Appelez-nous	-
2	5303013882		Screw, Cr Flat Head, 8-15(a) X 1/2, Hinge		Appelez-nous	-
3	5303013960		Screw, Spcl Low Pf, 8-32 X 5/8, Angle		Appelez-nous	-
4	5303283839		Angle-hook Mtg Assy		Appelez-nous	-
5	5303275281		Handle-door		Appelez-nous	-
6	5303275283		Panel-door (note 4)		Appelez-nous	-
7	5303922051		Frame-door, Black, Service(note 2)		Appelez-nous	-
8	5303279373		Hinge-door, Black(note 3)		Appelez-nous	-
9	5303051818		Screw-handle, 8-18 X 1/2		Appelez-nous	-
10	5303922104		Cover-door, (includes Tape)(note 1)		Appelez-nous	-
