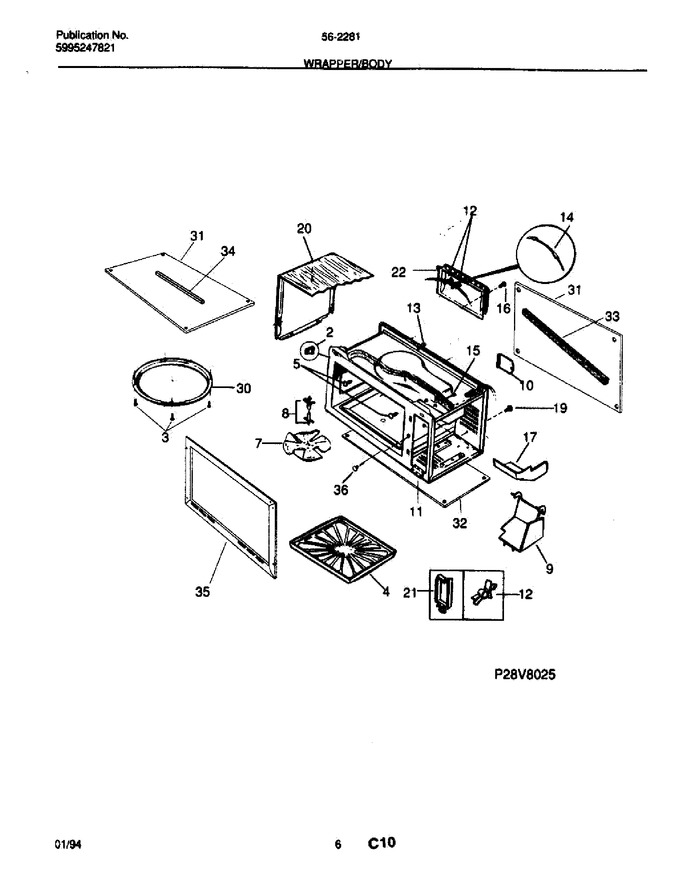

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3203010		Clip - Hinge   (Replaces: 5303012323)				$ 14.89
3	5303013807		Rivet, Accordian, Stirrer Cover		Appelez-nous	-
4	5303091188		Tray, Glass, Oven		Appelez-nous	-
5	5303291811		Plug-button, Interior White		Appelez-nous	-
7	5303202397		Fan, Stirrer, White		Appelez-nous	-
8	5303922010		Collar-stirrer,incl. Collar,support,washer		Appelez-nous	-
9	317000801		Baffle-air		Appelez-nous	-
10	5303212775		Cover-light		Appelez-nous	-
11	5303273916		Screw, Bracket Mtg, 8-18(ab) X 3/8, Control Panel		Appelez-nous	-
11	5303270384		Bracket, Cont Panel Sprt		Appelez-nous	-
12	5303212788		Support, Thrm Protector		Appelez-nous	-
13	5303280263		Bushing		Appelez-nous	-
14	5303212800		Wiring Harness, Fire Protector		Appelez-nous	-
15	5303212803		Nut, Fan Duct				$ 2.10
16	394027600		Screw, Tamper Proof, 8-15(a) X 1/2		Appelez-nous	-
17	5303273488		Duct-air, Cavity		Appelez-nous	-
19	5303271581		Rivet, Plastic		Appelez-nous	-
20	5303284343		Wrapper, Black		Appelez-nous	-
20	5303273263		Screw-wrapper, 8-18 X 1/2		Appelez-nous	-
21	5308037677		Clip, Wires		Appelez-nous	-
22	5303269958		Duct-air, Exhaust		Appelez-nous	-
30	5303200541		Cover, Stirrer, White		Appelez-nous	-
31	5303301274		Duct, Black, Top & Back		Appelez-nous	-
32	5303301275		Duct, Bot Chanel Base		Appelez-nous	-
33	5303281332		Foam-seal, Back Duct		Appelez-nous	-
34	5303281333		Foam-seal, Top Duct		Appelez-nous	-
35	5303273489		Frame-trim, Black, Front		Appelez-nous	-
35	3091567		Screw, 8-18 X 1/2, Black		Appelez-nous	-
36	5303282074		Plug-button, Plunger, White, Front Liner		Appelez-nous	-
	5303203124		Paint, Touch Up, White		Appelez-nous	-
	5303212809		Shield-oven Light, Mylar		Appelez-nous	-
