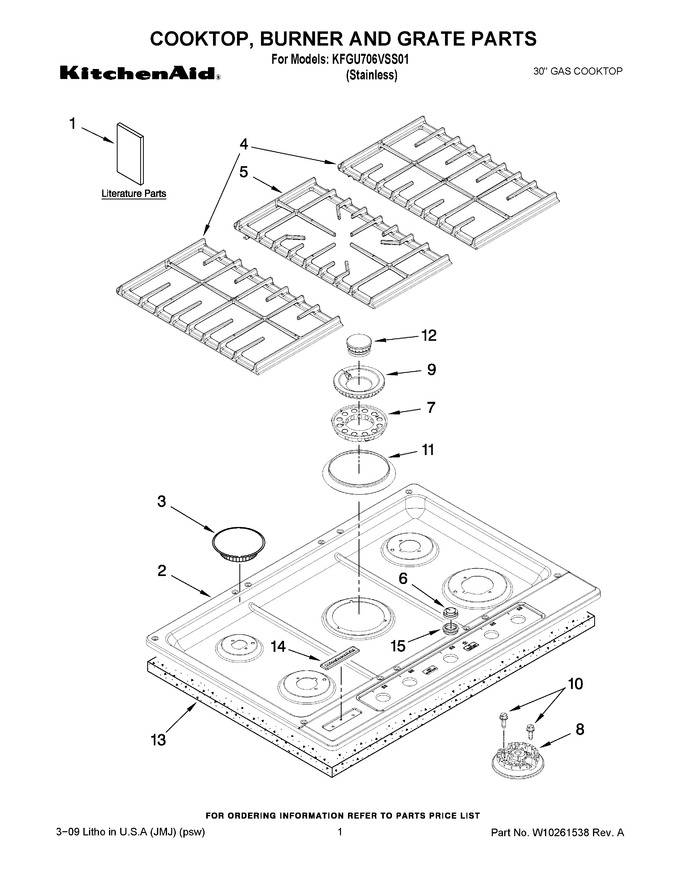

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286867		Installation Instructions		Appelez-nous	-
1	8304571		Inst. Instruction Undercounter		Appelez-nous	-
1	8286868		Use & Care Guide		Appelez-nous	-
1	8286697		Tech Sheet		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10181980		Lp Conversion Instructions		Appelez-nous	-
2	W10132148		Cooktop				$ 357.67
3	WP8286818		Cap, Burner (black) (rf)   (Replaces: 8286818)				$ 100.97
3	WP8286816		Cap, Burner (black) (lr)   (Replaces: 8286816)				$ 94.92
3	WP8286817		Cap, Burner (black) (rr, Lf)   (Replaces: 8286817)				$ 100.88
4	8286661		Grate, Burner (right Side)				$ 89.11
4	8286659		Grate, Burner (left Side)				$ 91.14
5	8287048		Grate, Center				$ 88.87
6	WPW10132192		Knob (standard Brnr)   (Replaces: W10132192)				$ 53.82
6	W10132191		Knob (special Brnr)				$ 53.42
7	WP8287072		Cross Ring, Ctr Brn   (Replaces: 8287072)				$ 178.52
8	WP8286815		Head, Burner (rf)   (Replaces: 8286815)			Immediately	$ 66.94
8	WP8286814		Head, Burner (rr, Lf)   (Replaces: 8286814)				$ 106.79
8	WP8286813		Head, Burner (lr)   (Replaces: 8286813)				$ 85.50
9	WPW10153033		Outer Spreader   (Replaces: W10153033)				$ 168.80
10	WP8287059		Screw   (Replaces: 8287059)			Immediately	$ 7.02
11	8287075		Beauty Ring, Ctr Brn				$ 30.60
12	WPW10163407		Inner Spreader   (Replaces: W10163407)				$ 137.60
13	8286861		Insulation, Cktp		Appelez-nous	-
14	8304603SS		Nameplate				$ 51.11
15	8286854		Grommet, Knob				$ 7.51
