SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

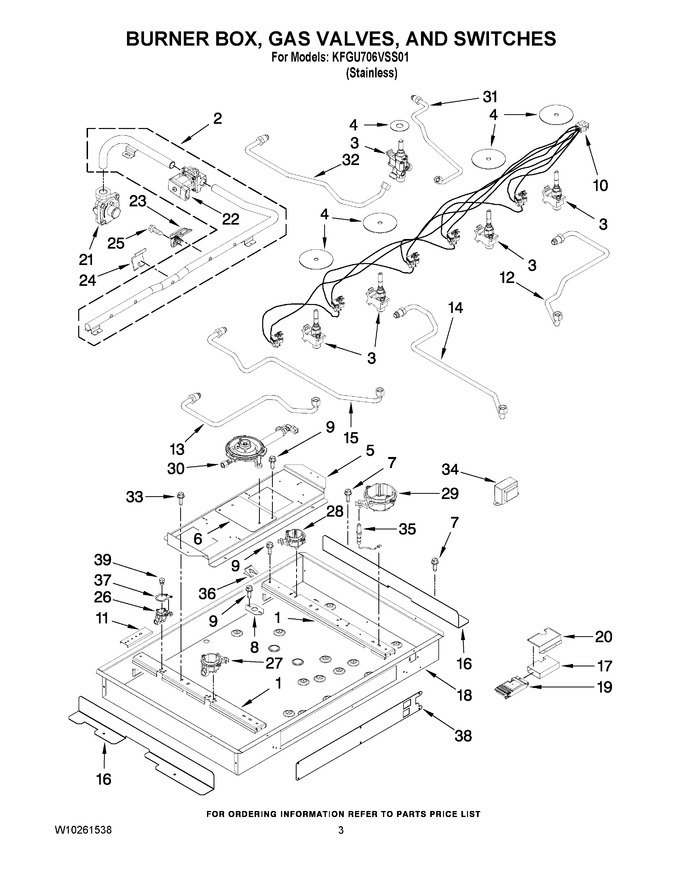

02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286753		Rail, Burner (left)		Appelez-nous	-
1	8286728		Rail, Burner (right)		Appelez-nous	-
2	8287311		Pipe, Manifold				$ 218.84
3	WP8287058		Valve, Gas Burner (center Dual)   (Replaces: 8287058)				$ 275.16
3	8286920		Valve, Gas Burner (rf)				$ 153.17
3	8286919		Valve, Gas Burner (lr, Rr)				$ 212.06
3	8286916		Valve, Gas Burner (lr)				$ 213.35
4	W10140577		Seal, Shaft (dual (1))		Appelez-nous	-
4	W10140571		Seal, Shaft (single (4))				$ 6.60
5	8286765		Rail, Center		Appelez-nous	-
6	W10141511		Plate, Center Brnr		Appelez-nous	-
7	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
8	8286858		Bracket, Mainfold		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	8286687		Harness & Switches				$ 89.50
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	8286733		Tubing, Gas Burner (rf)		Appelez-nous	-
13	8286731		Tubing, Gas Burner (lf)				$ 12.85
14	8286734		Tubing, Gas Burner (rr)		Appelez-nous	-
15	8286732		Tubing, Gas Burner (lr)		Appelez-nous	-
16	8286771		Shield, Heat (2)		Appelez-nous	-
17	8286829		Module, Reignition				$ 243.02
18	W10132197		Burner Box		Appelez-nous	-
19	8287103		Insulation, Reignition Module				$ 66.94
20	W10132198		Cover,reignit.mdl.		Appelez-nous	-
21	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
22	8287076		Valve, Solenoid Lock (3/8 Npt)				$ 193.47
23	8287055		Bracket, Single Vlv				$ 65.54
24	8287056		Bracket,dual Vlv		Appelez-nous	-
25	8287057		Screw, Brkt Vlv				$ 10.15
26	8286820		Orifice Hldr 6k Lr				$ 68.99
27	W10140569		Orifice Hldr 7k Lf				$ 69.13
28	8286821		Orifice Hldr 9k Rr				$ 69.13
29	8286822		Orifice Hld 12k Rf				$ 47.00
30	8286819		Orific Hld 15k (ctr)				$ 124.66
31	W10132184		Pipe,ext. Crown		Appelez-nous	-
32	W10132185		Pipe,int. Crown				$ 36.27
33	W11676349		Screw, Brnr Rail   (Replaces: 8286921)			Immediately	$ 12.65
34	8286690		Transformer 120/120 16+16 Vac				$ 113.04
35	8286723		Electrode (lr)				$ 69.68
35	W10854967		Electrode (rr)   (Replaces: 8286725)			Immediately	$ 41.37
35	8286724		Electrode (rf)				$ 30.12
35	WPW10560001		Electrode (lf)   (Replaces: 8286722)				$ 71.52
36	8286863		Spring, Electrode				$ 65.93
37	8286932		Gasket, Orifice (rf)				$ 82.11
37	8286930		Gasket, Orifice (lr)				$ 82.05
37	8286931		Gasket, Orifice (lr, Rr)				$ 53.77
38	8286740		Cover Plate		Appelez-nous	-
39	W10151350		Orifice (ng) (lf)				$ 72.95
39	W10791081		Orifice (ng) (rf)   (Replaces: W10151346)				$ 85.86
39	W10791072		Orifice (ng) (ctr)   (Replaces: W10151349)				$ 85.86
39	W10791614		Orifice (ng) (lr)   (Replaces: W10151348)				$ 85.86
39	W10791076		Orifice (ng) (rr)   (Replaces: W10151347)				$ 85.86

    View Diagram in Separate Window       Print Part List
