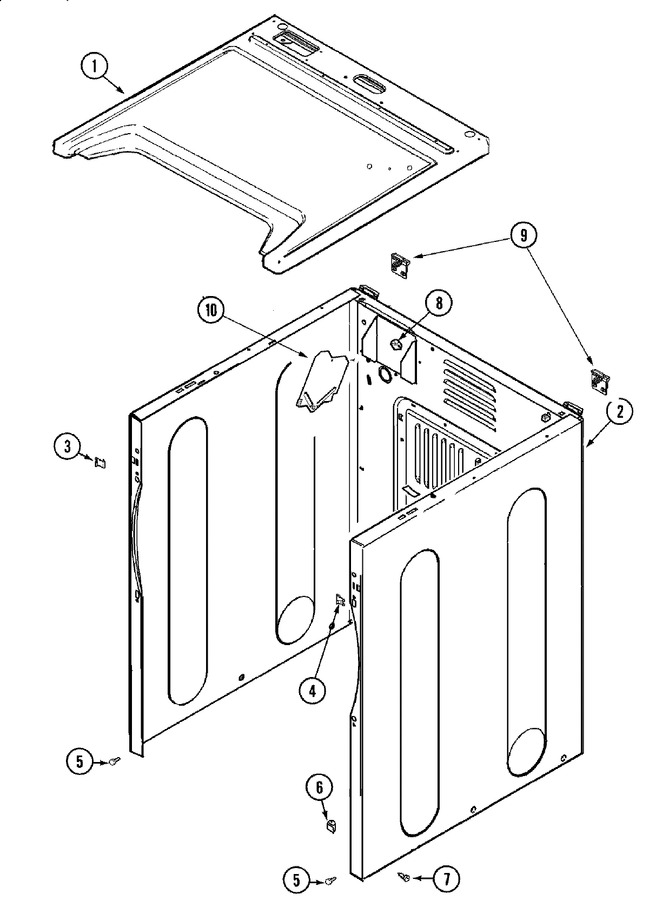

01 - Cabinet
02 - Control Panel
03 - Door
04 - Gas Valve
05 - Motor Drive
06 - Supplemental Information
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002632 | Cover, Top (bsq-as Pk) | 10 |
|
- | ||||
| 2 | 22003644 | Cabinet Assy. (bsq As Pk) | 10 |
|
- | ||||
| 3 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 4 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 5 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 33002073 | Clip, Wire Harness | 10 |
|
- | ||||
| 7 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 8 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 9 | 22003367 | Hinge, Plastic | 10 |
|
- | ||||
| 9 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 10 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | Y310376 | Clip, Wire Harness |
|
- |
