SELECT A DIAGRAM

01 - Cabinet


02 - Control Panel


03 - Door


04 - Gas Valve


05 - Motor Drive


06 - Supplemental Information


07 - Tumbler


08 - Wiring Information

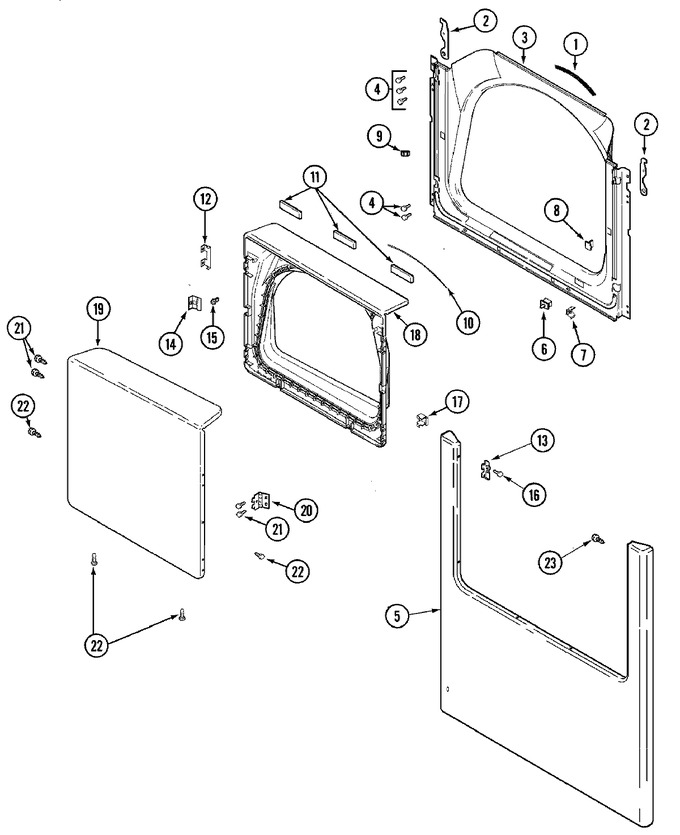

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001767		Seal, Shroud	10			$ 25.05
2	33002597		Hook, Security	10			$ 28.59
3	33002436		Shroud, (bsq)	10	Appelez-nous	-
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
5	22002239		Clip, Lower Front Panel	10			$ 5.84
5	213280		Front Panel Bracket/fastener	10	Appelez-nous	-
5	33002368		Panel, Front (bsq)	10	Appelez-nous	-
6	W10169313		Switch, Door   (Replaces: 33001508)	10		Immediately	$ 29.18
7	33001760		Bracket, Hinge	10	Appelez-nous	-
8	33001763		Plug, Inner Door	10			$ 6.90
9	306436		Catch, Door (w/plug)   (Replaces: 33001791)	10		Immediately	$ 10.17
9	LA-1003		Catch, Door (female)   (Replaces: Y304578)	10		Immediately	$ 24.51
10	WP33002094		Seal, Door   (Replaces: 33002094)	10		Immediately	$ 113.69
11	33001268		Pad, Door	10	Appelez-nous	-
12	22002038		Clip, Door (double)	10	Appelez-nous	-
13	33002349		Cover, Hinge Hole (bsq)	10			$ 5.51
13	22002244		Clip, Grounding	10	Appelez-nous	-
14	WP33001793		Bracket, Strike   (Replaces: 33001793)	10			$ 7.43
15	33001761		Strike, Door (male)	10			$ 5.84
16	22002243		Screw	10	Appelez-nous	-
17	33001763		Plug, Inner Door	10			$ 6.90
18	33002351		Screw (no.8-18 Outer Door (bsq)	10	Appelez-nous	-
18	33002439		Door, Inner (bsq)	10	Appelez-nous	-
19	33002371		Door, Outer (bsq)	10	Appelez-nous	-
20	WP33001759		Hinge, Door   (Replaces: 33001759)	10			$ 69.86
21	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
22	33002351		Screw (no.8-18 Outer Door (bsq)	10	Appelez-nous	-
23	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26

    View Diagram in Separate Window       Print Part List
