01 - Cooktop, Burner And Grate Parts

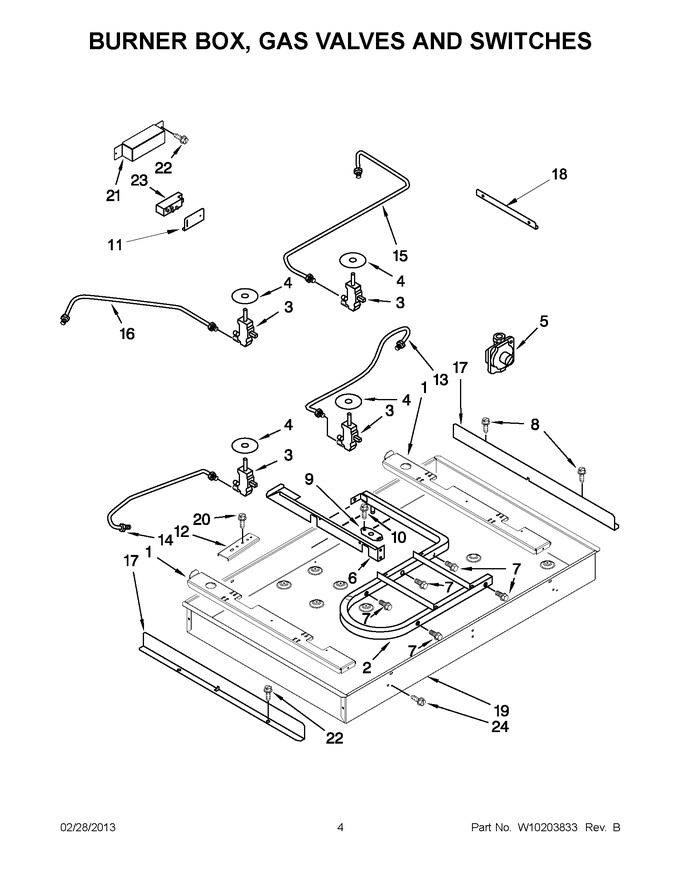

02 - Burner Box, Gas Valves And Switches


03 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8286069		Pipe, Manifold				$ 295.39
3	8286560		Valve, Gas Burner (right Front)				$ 123.39
3	8286561		Valve, Gas Burner (left Front)				$ 277.50
3	WP4456817		Valve, Burner (left Rear)   (Replaces: 4456817)				$ 286.38
3	8286559		Valve, Gas Burner (right Rear)				$ 123.31
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	4454571		Regulator, Pressure				$ 108.68
6	8285791		Rail, Center		Appelez-nous	-
7	8523704		Screw		Appelez-nous	-
8	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
9	3192491		Bracket, Manifold		Appelez-nous	-
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
11	4455837		Bracket, Spark Module				$ 70.10
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
13	8285793		Tubing, Gas Burner (right Front)				$ 162.29
14	8285794		Tubing, Gas Burner (left Front)				$ 179.75
15	8285792		Tubing, Gas Burner (right Rear)				$ 160.65
16	8285795		Tubing, Gas Burner (left Rear)				$ 158.02
17	3191462		Shield, Heat		Appelez-nous	-
18	9759145		Bracket, Manifold Support				$ 26.15
19	8285774		Burner Box		Appelez-nous	-
20	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
21	8285788		Shield, Heat		Appelez-nous	-
22	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
23	WPW10110491		Module, Spark   (Replaces: 8522423)			Immediately	$ 276.35
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
