SELECT A DIAGRAM

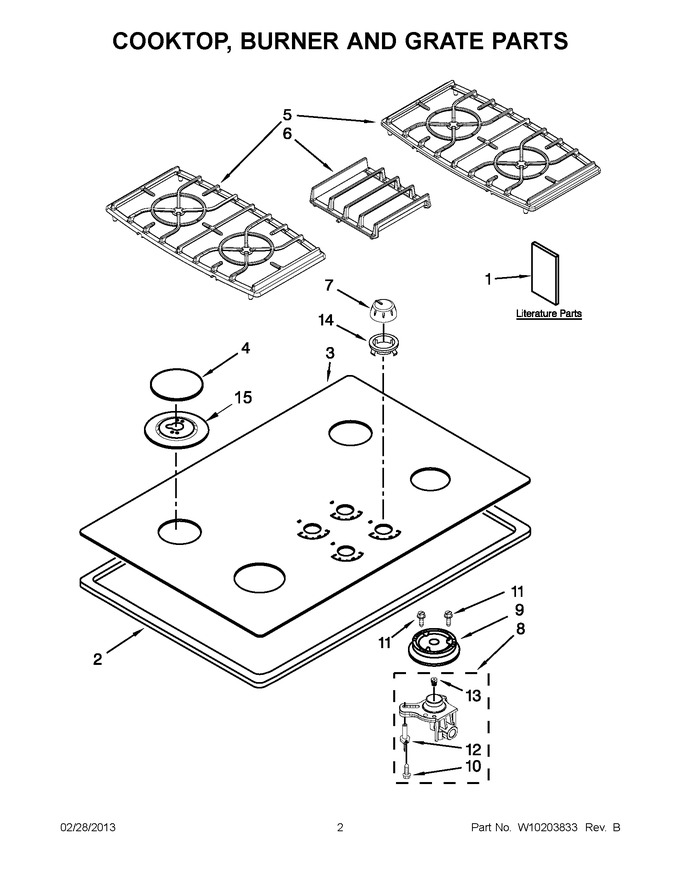

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


03 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286620		Instructions, Lp Conversion		Appelez-nous	-
1	W10162188		Use & Care Guide		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	8304571		Instructions, Undercounter		Appelez-nous	-
2	3191932		Seal, Foam		Appelez-nous	-
3	W10564558		Cooktop (black)   (Replaces: W10141011)				$ 767.08
3	8286171		Cooktop (white)		Appelez-nous	-
4	WP8286156CB		Cap, Burner (coal Black (left Front))   (Replaces: 8286156CB)				$ 106.95
4	WP8286155CB		Cap, Burner (coal Black (right Front))   (Replaces: 8286155CB)				$ 104.70
4	8286156CG		Cap, Burner (cumberland Grey (left Front))				$ 114.65
4	WP8286153CB		Cap, Burner (coal Black (right Rear))   (Replaces: 8286153CB)				$ 61.97
4	WP8286154CG		Cap, Burner (cumberland Grey (left Rear))   (Replaces: 8286154CG)				$ 86.04
4	WP8286154CB		Cap, Burner (coal Black (left Rear))   (Replaces: 8286154CB)				$ 77.94
4	WP8286155CG		Cap, Burner (cumberland Grey (right Front))   (Replaces: 8286155CG)				$ 89.27
4	WP8286153CG		Cap, Burner (cumberland Grey (right Rear))   (Replaces: 8286153CG)				$ 72.00
5	W11242860		Grate, Burner (cumberland Grey)   (Replaces: 8285879CG)				$ 233.74
5	W11502175		Grate, Burner (coal Black)   (Replaces: 8285879CB)				$ 218.02
6	W11242858		Grate, Center (cumberland Grey)   (Replaces: 8285880CG)				$ 257.16
6	W11242862		Grate, Center (coal Black)   (Replaces: 8285880CB)				$ 164.56
7	WP8286094BL		Knob, Control (black)   (Replaces: 8286094BL)			Immediately	$ 25.33
7	8286094WH		Knob, Control (white)				$ 28.67
8	WPW10128450		Assembly, Orifice Holder (left Rear)   (Replaces: W10128450)				$ 106.59
8	WPW10128448		Assembly, Orifice Holder (right Rear)   (Replaces: W10128448)			Immediately	$ 100.54
8	WPW10128451		Assembly, Orifice Holder (right Front)   (Replaces: W10128451)				$ 99.80
8	WPW10128445		Assembly, Orifice Holder (left Front)   (Replaces: W10128445)				$ 102.09
9	WPW10406878		Burner Head, Ultra Rapid (17k) (left Front)   (Replaces: 8286183)			Immediately	$ 92.12
9	WPW10406283		Burner Head, Semi (left Rear)   (Replaces: 8286184)				$ 66.87
9	WPW10406243		Burner Head, Auxiliary (6k) (right Rear)   (Replaces: 8286181)			Immediately	$ 33.50
9	WPW10406797		Burner Head, Rapid (12k) (right Front)   (Replaces: 8286182)				$ 79.64
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
12	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
13	8286474		Orifice (left Front)				$ 81.03
13	WP3192529		Orifice (right Rear)   (Replaces: 3192529)				$ 86.35
13	WP3192523		Orifice (left Rear)   (Replaces: 3192523)				$ 80.19
13	8286551		Orifice (right Front)				$ 89.96
14	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.40
14	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.58
15	8285779CG		Bezel (grey (17k) (left Front))				$ 111.78
15	9753601BL		Bezel (black (6k) (right Rear))				$ 28.59
15	9753602BL		Bezel (black (12k) (left Rear & Right Front))				$ 59.66
15	8285779BL		Bezel (black (17k) (left Front))				$ 111.57
15	9753601CG		Bezel (grey (6k) (right Rear))				$ 129.08
15	9753602CG		Bezel (grey (12k) (left Rear & Right Front))				$ 59.90

    View Diagram in Separate Window       Print Part List
