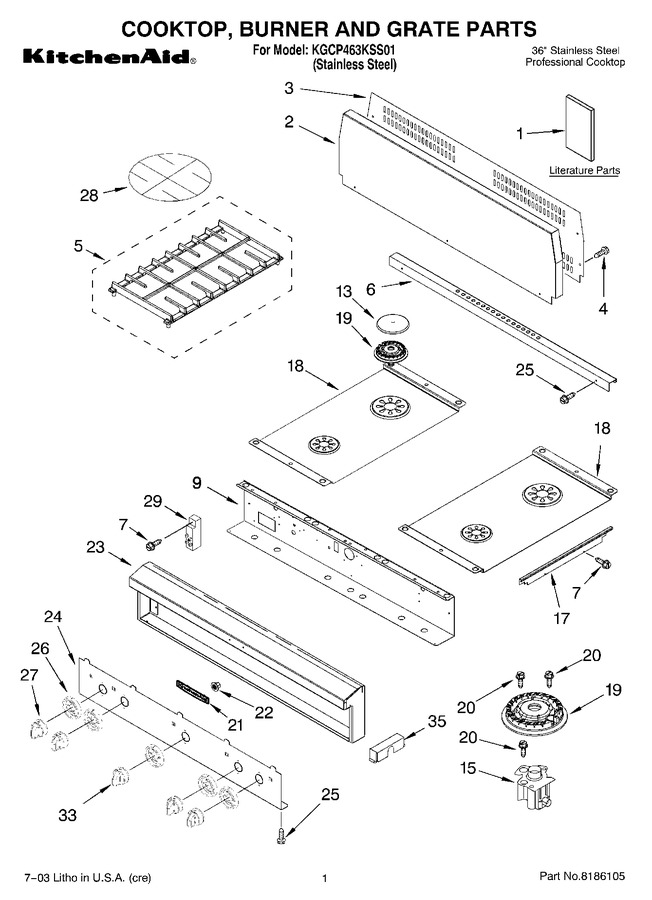

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8285589 | Literature Parts (instructions, Lp Conversion) |
|
- | |||||
| 1 | LIT8284671 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8285588 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8285479 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | 4454960 | Backsplash |
|
- | |||||
| 3 | 8284712 | Support, Backsplash |
|
- | |||||
| 4 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | 4454963 | Grate, Burner |
|
- | |||||
| 6 | 8284851 | Trim, Island |
|
- | |||||
| 7 | WP12990527 | Screw, 8-18 X 1/4 (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 9 | 8285478 | Support, Control Panel |
|
- | |||||
| 13 | 4455243 | Cap, Burner (14k (2)) |
|
$ 41.37 | |||||
| 13 | WP8284669 | Cap, Burner (6k (2)) (Replaces: 8284669) |
|
Immediately | $ 64.79 | ||||
| 15 | 9782447 | Holder, Orifice Includes Orifice (auxillary (2)) |
|
$ 47.46 | |||||
| 15 | WPW10155786 | Holder, Orifice Includes Orifice (turbo (2)) (Replaces: 4456622) |
|
Immediately | $ 102.16 | ||||
| 17 | 8285162 | Trim, Side (left Hand) |
|
- | |||||
| 17 | 8285161 | Trim, Side (right Hand) |
|
- | |||||
| 18 | 8284812 | Cooktop, Black |
|
- | |||||
| 19 | 4455979 | Burner Head 14k (auxillary (2)) |
|
$ 28.52 | |||||
| 19 | 4455849 | Burner Head 14k (turbo (2)) |
|
$ 47.68 | |||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 2005292 | Nameplate |
|
$ 52.20 | |||||
| 22 | WP2004333 | Palnut (Replaces: 2004333) |
|
$ 9.63 | |||||
| 23 | 4455217 | Control Frame |
|
- | |||||
| 24 | 8284798 | Panel, Control |
|
- | |||||
| 25 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 26 | 4455192 | Bezel, Knob |
|
- | |||||
| 27 | WPW10078400 | Knob, Burner (Replaces: 4454970) |
|
$ 6.26 | |||||
| 28 | 4455109 | Plate, Simmer |
|
$ 52.31 | |||||
| 29 | WPW10110491 | Module, Spark 4-burner (Replaces: 8522423) |
|
Immediately | $ 276.35 | ||||
| 33 | 8284743 | Knob, Griddle |
|
$ 114.56 | |||||
| 35 | 8285038 | Cover, Burner Spud |
|
- |
