01 - Cooktop, Burner And Grate Parts

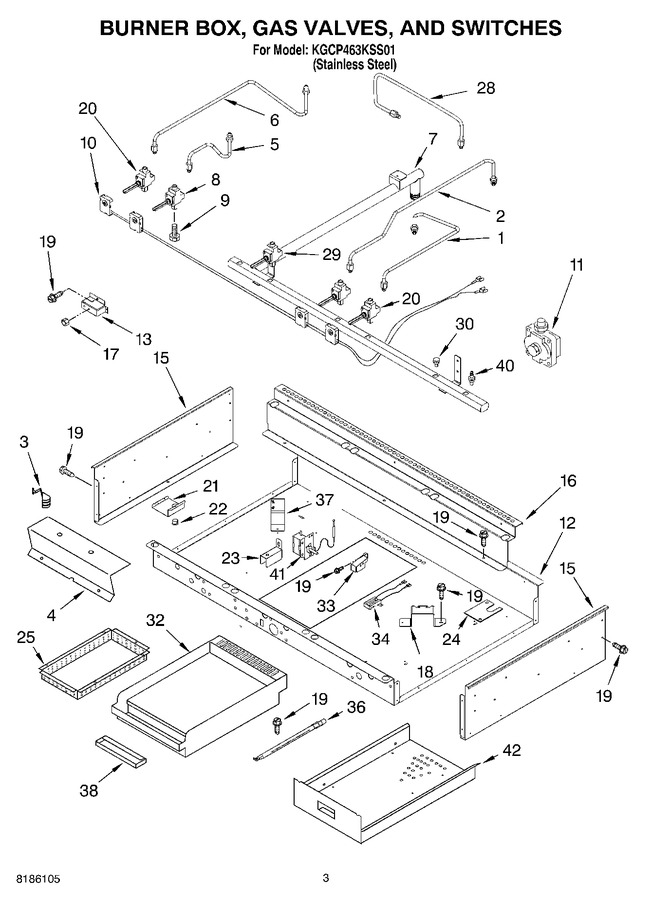

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455040		Tubing, Gas Burner - Rf		Appelez-nous	-
2	4455041		Tubing, Gas Burner - Rr		Appelez-nous	-
3	98005642		Clip, Bulb   (Replaces: 313382)			Immediately	$ 74.64
4	8284811		Bracket		Appelez-nous	-
5	4455153		Tubing, Gas Burner - Lf		Appelez-nous	-
6	4455154		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8284749		Manifold (includes Items 9 & 30)		Appelez-nous	-
8	3192157		Valve, Burner (turbo)		Appelez-nous	-
9	3185829		Bolt, Valve		Appelez-nous	-
10	8301209		Burner Switch & Harness Assembly		Appelez-nous	-
10	W10491984		Seal, Switch   (Replaces: 3192439)				$ 10.33
11	WP9759091		Regulator, Pressure   (Replaces: 4455157)			Immediately	$ 291.80
12	8284970		Burner Box		Appelez-nous	-
13	8284805		Bracket, Griddle Valve		Appelez-nous	-
15	8285360		Side, Burner Box (right Hand)		Appelez-nous	-
15	8285359		Side, Burner Box (left Hand)		Appelez-nous	-
16	8284946		Support, Rear		Appelez-nous	-
17	WP488130		Nut, Hex   (Replaces: 488130)				$ 6.27
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	3191292		Valve, Burner Auxillary				$ 120.40
21	8284680		Cover, Shelf		Appelez-nous	-
22	8284722		Bushing, Cover Shelf		Appelez-nous	-
23	4449845		Bracket-support		Appelez-nous	-
24	8285361		Cover, Panel		Appelez-nous	-
25	8285031		Box, Burner Lower		Appelez-nous	-
28	8284975		Tube, Griddle		Appelez-nous	-
29	8284788		Valve, Griddle				$ 183.21
30	8284796		Plug, Manifold (closed)		Appelez-nous	-
32	8284759		Module, Griddle		Appelez-nous	-
33	8284800		Bracket, Ignitor		Appelez-nous	-
34	8284941		Ignitor, Grill				$ 98.51
36	8285051		Log Burner, Griddle				$ 60.54
36	WP3400805		Screw   (Replaces: 3400805)				$ 6.47
37	8284993		Bracket, Thermo		Appelez-nous	-
38	8285569		Tray, Drip		Appelez-nous	-
40	8284804		Plug, Manifold (open)		Appelez-nous	-
41	8284765		Griddle, Thermo				$ 255.18
42	N/A		Miscellaneous		Appelez-nous	-
42	1129449		Bushing		Appelez-nous	-
42	4173634		Bushing, Electric				$ 5.83
42	4456627		Harness, Wire Jumper				$ 189.13
42	4456628		Harness, Wire Ignitor				$ 95.35
42	8284782		L.p. Orifice Spud Pack		Appelez-nous	-
42	8285056		Enclosure, Griddle		Appelez-nous	-
42	8285527		Power Cord		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
