SELECT A DIAGRAM

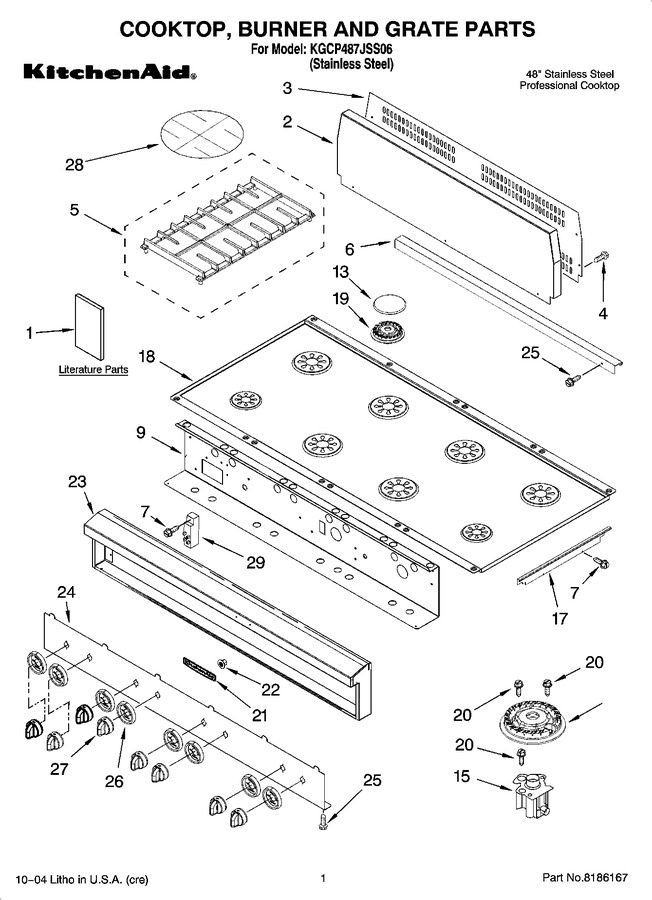

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8285497 | Installation Instructions |
|
- | |||||
| 1 | 8284780 | Instructions, Lp Conversion |
|
- | |||||
| 1 | 8285063 | Instructions, Island Trim |
|
- | |||||
| 1 | 8284671 | Wiring Diagram |
|
- | |||||
| 1 | 8285588 | Use & Care Guide |
|
- | |||||
| 2 | 8285057 | Backsplash |
|
- | |||||
| 3 | 8285058 | Support, Backsplash |
|
- | |||||
| 4 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | 4457149 | Grate, Burner |
|
- | |||||
| 6 | 8302389 | Trim, Island |
|
- | |||||
| 7 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 9 | 8285486 | Support, Control Panel |
|
- | |||||
| 13 | WP8284669 | Cap, Burner (auxi, 6k Lf-rf) (Replaces: 8284669) |
|
Immediately | $ 64.79 | ||||
| 13 | 4455243 | Cap, Burner (turbo, 14k (6)) |
|
$ 41.37 | |||||
| 15 | 4456920 | Base, Burner (auxi, 6k Lf-rf Includes Orifice) |
|
- | |||||
| 15 | WPW10155786 | Base, Burner (turbo, 14k (6)) (Replaces: 4456622) |
|
Immediately | $ 102.16 | ||||
| 15 | WP12990527 | Base, Burner (screw) (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 17 | 4457297 | Trim, Side (left Hand) |
|
- | |||||
| 17 | 4457296 | Trim, Side (right Hand) |
|
- | |||||
| 18 | 8284726 | Cooktop, Black |
|
- | |||||
| 18 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 19 | 4455979 | Burner Head (auxi, 6k Lf-rf) |
|
$ 28.52 | |||||
| 19 | 4455849 | Burner Head (turbo, 14k (6)) |
|
$ 47.68 | |||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 2005292 | Nameplate |
|
$ 52.20 | |||||
| 22 | WP2004333 | Palnut (Replaces: 2004333) |
|
$ 9.63 | |||||
| 23 | 8284939 | Control Frame |
|
- | |||||
| 24 | 4457157 | Panel, Control |
|
- | |||||
| 25 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 26 | 4455192 | Bezel, Knob |
|
- | |||||
| 27 | WPW10078400 | Knob, Burner (Replaces: 4454970) |
|
$ 6.26 | |||||
| 28 | 4455109 | Plate, Simmer |
|
$ 52.31 | |||||
| 29 | WPW10110491 | Module, Spark 4-burner (Replaces: 8522423) |
|
Immediately | $ 276.35 | ||||
| 29 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 |
