01 - Cooktop, Burner And Grate Parts

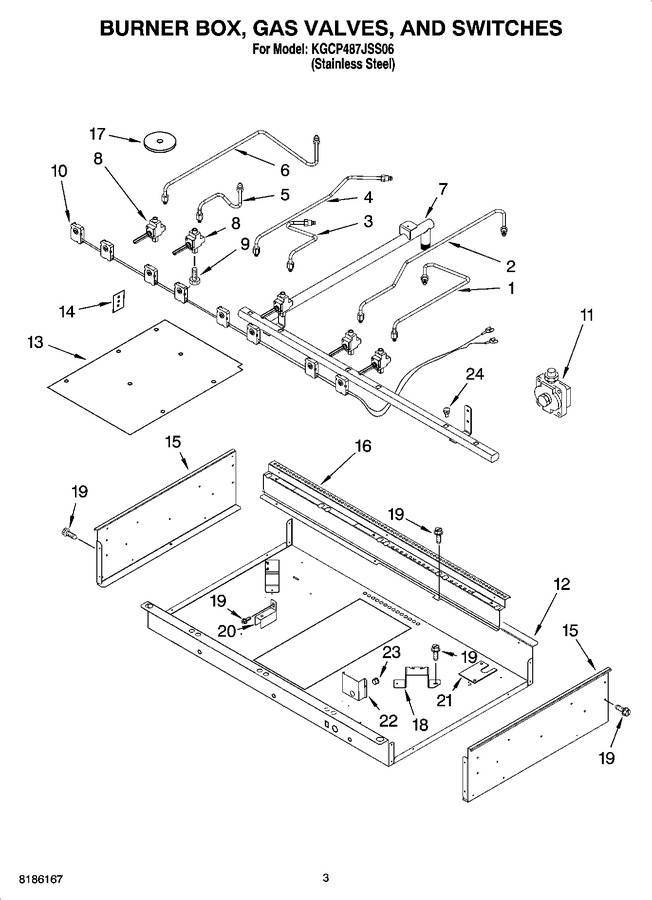

02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455040 | Tubing, Gas Burner - Rf |
|
- | |||||
| 2 | 4455041 | Tubing, Gas Burner - Rr |
|
- | |||||
| 3 | 4455151 | Tubing, Gas Burner - Cf |
|
- | |||||
| 4 | 4455152 | Tubing, Gas Burner - Cr |
|
- | |||||
| 5 | 4455153 | Tubing, Gas Burner - Lf |
|
- | |||||
| 6 | 4455154 | Tubing, Gas Burner - Lr |
|
- | |||||
| 7 | 8284737 | Manifold |
|
- | |||||
| 8 | 4456818 | Valve, Burner (large (6)) |
|
$ 231.30 | |||||
| 8 | WP4456816 | Valve, Burner (small, Lf-rf) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 9 | 3186217 | Bolt, Valve |
|
$ 5.53 | |||||
| 10 | 4456906 | Burner Switch & Harness Assembly |
|
$ 106.59 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 291.80 | ||||
| 12 | 4457095 | Burner Box |
|
- | |||||
| 13 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 13 | 8284964 | Plate, Burner Holder |
|
- | |||||
| 14 | W10491984 | Seal, Switch (Replaces: 3192439) |
|
$ 10.33 | |||||
| 15 | 8285487 | Side, Burner Box (right Hand) |
|
- | |||||
| 15 | 8285488 | Side, Burner Box (left Hand) |
|
- | |||||
| 16 | 9759137 | Support, Rear |
|
- | |||||
| 17 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 18 | 3192811 | Bracket, Burner |
|
- | |||||
| 19 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 20 | 4449845 | Bracket-support |
|
- | |||||
| 21 | 8285361 | Cover, Manifold Slot |
|
- | |||||
| 22 | 8284680 | Cover, Shelf |
|
- | |||||
| 23 | 8284722 | Bushing, Cover Shelf |
|
- | |||||
| 24 | 8284796 | Plug, Manifold (close) |
|
- | |||||
| W10392007 | Power Cord (Replaces: 3192231) |
|
$ 96.25 | ||||||
| 8285025 | Harness, Wire Jumper |
|
- | ||||||
| 1129449 | Bushing |
|
- | ||||||
| N/A | Miscellaneous |
|
- | ||||||
| 8284782 | L.p. Orifice Spud Pack |
|
- | ||||||
| 8284934 | Conversion Kit |
|
- | ||||||
| 8171420 | Cleaner |
|
- | ||||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 4456628 | Harness, Wire (ignitor 42``) |
|
$ 95.35 |
