SELECT A DIAGRAM
01 - Cover

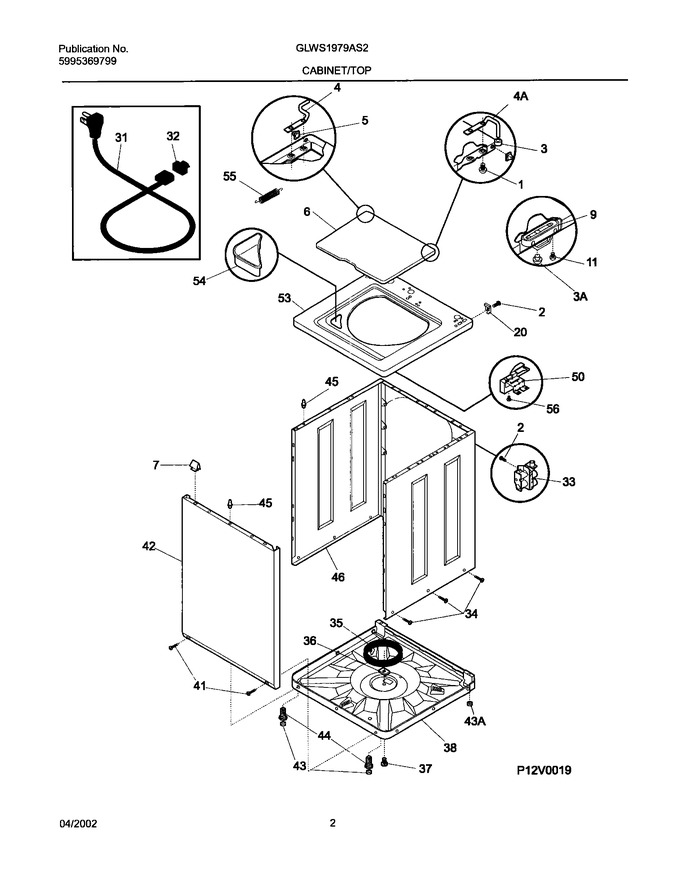

03 - Wshr Cab,top
05 - Wshr Mtr,hose
07 - Transmission
09 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw-hinge,pph 45deg Hdrpt ,6-32 X 0.3125 (Replaces: 131587500) |
|
$ 10.85 | |||||
| 2 | 131168200 | Screw,8-18 X 0.31 ,12 |
|
Immediately | $ 14.18 | ||||
| 3 | 131433300 | Bumper-hinge |
|
$ 13.18 | |||||
| 4 | 131385910 | Hinge-bar,lh |
|
$ 53.67 | |||||
| 5 | 5303208743 | Grommet-lid |
|
$ 5.63 | |||||
| 6 | 131374401 | Lid, White, W/o Inst. |
|
$ 112.37 | |||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 9 | 131390000 | Strike-lid |
|
$ 55.19 | |||||
| 11 | 3204368 | Screw-strike, Pfh B, 6-20 X .375 |
|
$ 13.01 | |||||
| 20 | 5303208751 | Hinge-rear Cabinet |
|
$ 33.50 | |||||
| 31 | 5304505407 | Cord-service (Replaces: 134100800) |
|
$ 88.20 | |||||
| 32 | 5303209428 | Bushing-cord |
|
$ 17.01 | |||||
| 34 | 131205500 | Screw-body, 1/4-14 X 0.625 |
|
$ 13.46 | |||||
| 35 | 5308002385 | Ring-snubber |
|
$ 54.86 | |||||
| 36 | 3204380 | Block-shipping |
|
$ 12.29 | |||||
| 37 | 131658900 | Screw-shipping |
|
$ 6.77 | |||||
| 38 | 5303311213 | Base Assembly |
|
$ 374.69 | |||||
| 41 | 131302800 | Screw-front Pnl,comb Th Ab ,10-16 X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 42 | 131104303 | Panel - Front - White |
|
$ 309.70 | |||||
| 43 | 131422100 | Pad-leveling Leg |
|
$ 17.59 | |||||
| 44 | 134548800 | Leg-leveling, With Pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 131346400 | Pin, Locating |
|
$ 12.44 | |||||
| 46 | 134046600 | Asmy-cabinet 3 Pc-white |
|
$ 383.99 | |||||
| 53 | 131452692 | Panel-top Blch Wht Fs Wshr |
|
$ 198.77 | |||||
| 54 | 5303208778 | Dispenser-bleach |
|
$ 51.71 | |||||
| 55 | 134890500 | Spring-lid (Replaces: 5303212876) |
|
$ 19.85 | |||||
| 56 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 3A | 134075500 | Bumper-lid |
|
$ 17.35 | |||||
| 43A | 131422200 | Pad-level Leg |
|
Immediately | $ 56.70 | ||||
| 4A | 131374220 | Hinge Bar R.h. |
|
$ 42.30 | |||||
| F33 | 134190200 | Valve-water (Replaces: 131389300) |
|
Immediately | $ 153.09 | ||||
| F50 | ES1800 | Lid Lock W/external Sw (Replaces: 134101800) |
|
Immediately | $ 61.20 | ||||
| NI | 5303309503 | Clip-backsheet |
|
$ 7.09 | |||||
| NI | 131744202 | Vibration Damper |
|
- |
