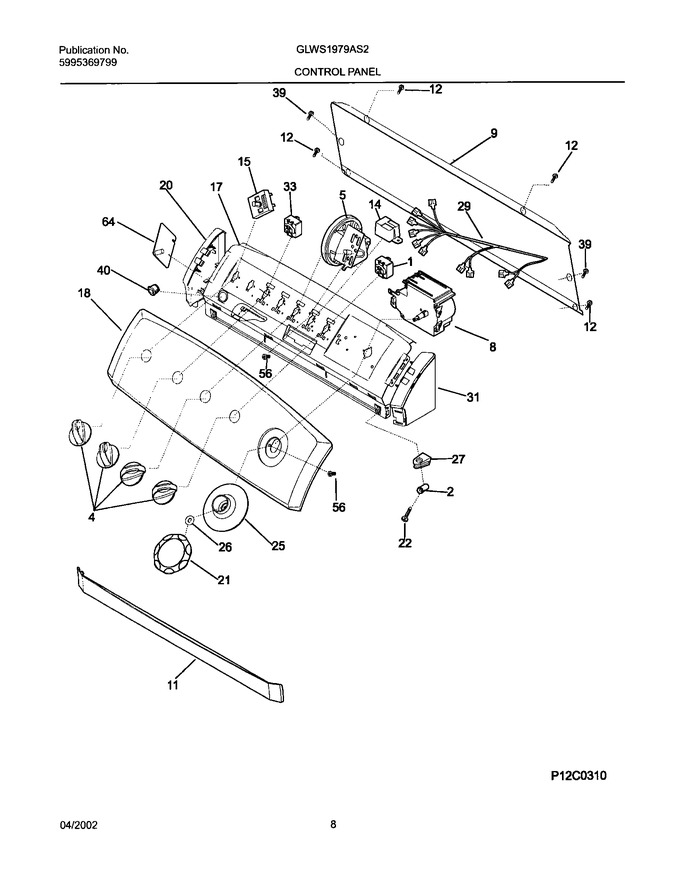

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wshr Cab,top
05 - Wshr Mtr,hose
07 - Transmission
09 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131893500 | Switch-spd 4 Pos Rot-3spd |
|
$ 82.37 | |||||
| 2 | 134096100 | Spacer-console Mounting |
|
$ 13.55 | |||||
| 4 | 134844410 | Knob-rotary-wht ``z`` Cons (Replaces: 134034900) |
|
Immediately | $ 57.36 | ||||
| 5 | 134680100 | Switch-pressure (Replaces: 131396200) |
|
$ 113.51 | |||||
| 8 | 134049300 | Timer-elec Z W/buzzer |
|
$ 305.13 | |||||
| 9 | 131992910 | Backsheet-``z`` Cons-vaw |
|
$ 64.73 | |||||
| 11 | 134019900 | Closure-front-wht``z``cons |
|
$ 66.68 | |||||
| 12 | 131168200 | Screw,8-18 X 0.31 ,12 |
|
Immediately | $ 14.18 | ||||
| 17 | 131993010 | Brkt-cont Mtg M520 |
|
- | |||||
| 18 | 134111000 | Trimplate Fda1zrsz-3 |
|
- | |||||
| 20 | 134019610 | End Cap-lh-wht``z`` Cons |
|
$ 46.31 | |||||
| 21 | 134034800 | Asmy-timer Knob-white |
|
$ 54.13 | |||||
| 22 | 131266300 | Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black |
|
- | |||||
| 25 | 134034700 | Pointer-timer |
|
$ 54.60 | |||||
| 26 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 27 | 131197000 | Clip-control Panel |
|
$ 13.62 | |||||
| 31 | 134019600 | End Cap-rh-wht``z``cons |
|
$ 46.10 | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 56 | 131243800 | Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,56 ,cr/sq Drive |
|
$ 10.46 | |||||
| F14 | 134086900 | Buzzer-non Adjustable |
|
- | |||||
| F15 | 131858100 | Switch-temp 7 Pos Rotary |
|
- | |||||
| F29 | 134127100 | Harness-vaw-``z`` Atc |
|
- | |||||
| F33 | 134047700 | Switch-op 4pos |
|
- | |||||
| F40 | 134040800 | Switch-round-on/off |
|
$ 65.92 | |||||
| F64 | 131944900 | Automatic Temp Cont Board |
|
- |
