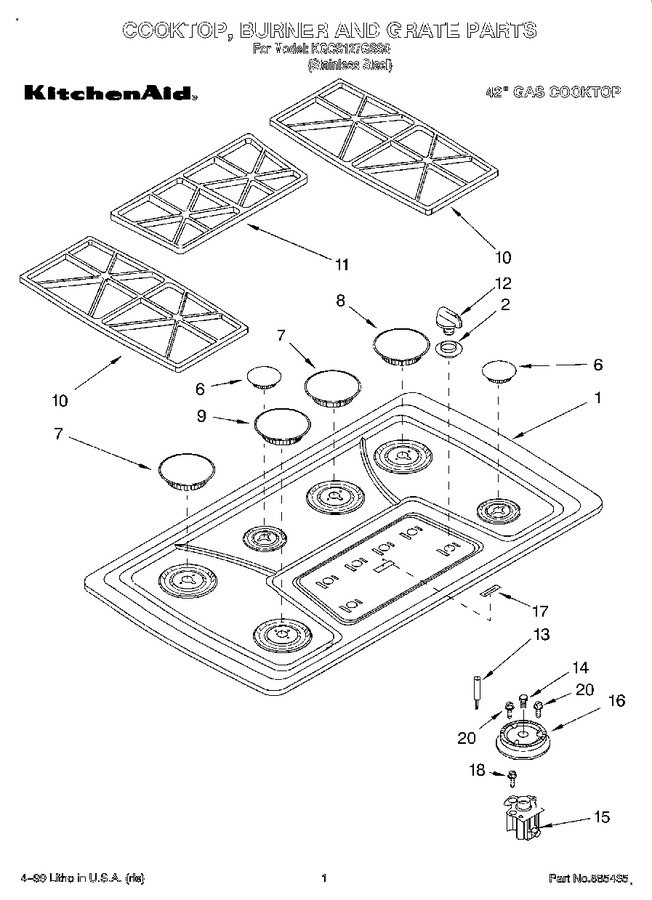

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191413 | Cooktop |
|
- | |||||
| 2 | WP4457192 | Collar (Replaces: 3192164) |
|
$ 52.13 | |||||
| 6 | 3192486 | Cap, (rf) (lc) |
|
$ 33.24 | |||||
| 7 | 3192487 | Cap, (rc) (lr) |
|
$ 34.52 | |||||
| 8 | 3192488 | Cap, (rr) |
|
$ 40.03 | |||||
| 9 | 3192489 | Cap, (lf) |
|
- | |||||
| 10 | WP9759505 | Grate, Burner (Replaces: 3192485) |
|
$ 189.84 | |||||
| 11 | 3192490 | Grate, Center |
|
- | |||||
| 12 | WP3191922 | Knob, Control (6) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 13 | 3192527 | Ignitor |
|
- | |||||
| 14 | WP9753930 | Orifice (rr) (Replaces: 3192524) |
|
$ 80.19 | |||||
| 14 | 3192528 | Orifice (rf) (lc) |
|
- | |||||
| 14 | WP3192523 | Orifice (lr) (rc) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 14 | 3192525 | Orifice (lf) |
|
$ 38.58 | |||||
| 15 | 3191740 | Holder, Orifice (right Front, Center Left) |
|
- | |||||
| 15 | 3191741 | Holder, Orifice (left Rear, Center Right) |
|
- | |||||
| 15 | 3191742 | Holder, Orifice (right Rear) |
|
- | |||||
| 15 | 3191743 | Holder, Orifice (left Front) |
|
- | |||||
| 16 | 9753187 | Head, Burner ((rc) (lr)) |
|
- | |||||
| 16 | 9753111 | Head, Burner ((lf)) |
|
- | |||||
| 16 | 9753109 | Head, Burner ((rf) (lc)) |
|
- | |||||
| 16 | 9753110 | Head, Burner ((rr)) |
|
- | |||||
| 17 | 3191514 | Nameplate |
|
$ 53.29 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 |
