01 - Cooktop, Burner And Grate Parts

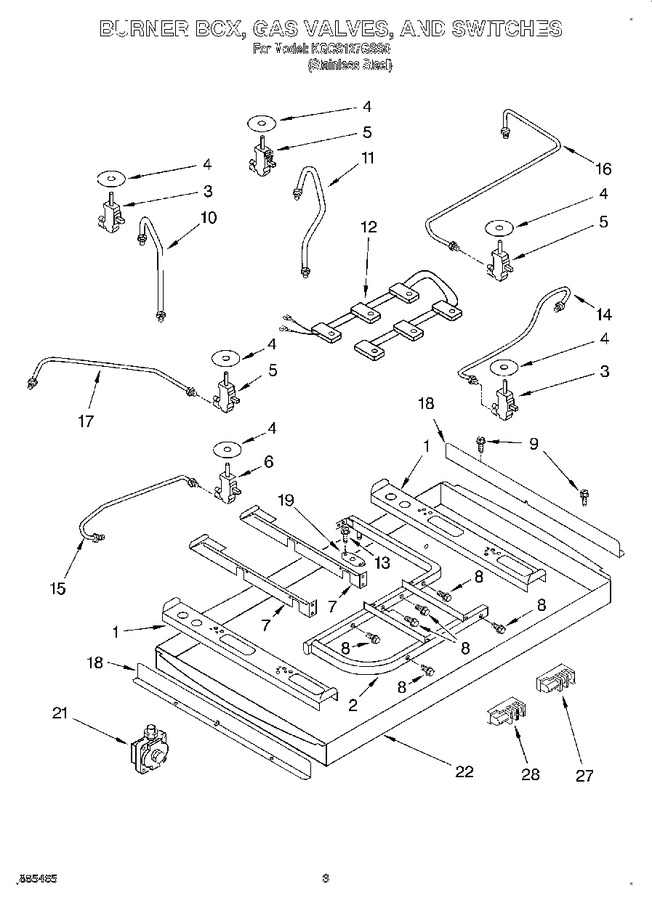

02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203756 | Rail, Burner (Replaces: 3191557) |
|
- | |||||
| 2 | 3191420 | Pipe, Manifold |
|
- | |||||
| 3 | 3191292 | Valve, Gas Burner Burner, (rf) (lc) |
|
$ 120.40 | |||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | 3191293 | Valve, Gas Burner (rr) (lr) (rc) |
|
$ 122.26 | |||||
| 6 | 3192157 | Valve, Gas Burner (lf) |
|
- | |||||
| 7 | 3192083 | Rail, Center |
|
- | |||||
| 8 | 307630 | Bolt, Gas Valve |
|
- | |||||
| 9 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 10 | 3191330 | Tubing, Gas Burner (lc) |
|
- | |||||
| 11 | 3191331 | Tubing, Gas Burner (rc) |
|
- | |||||
| 12 | 3191503 | Harness & Switches |
|
- | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 14 | 3191324 | Tubing, Gas Burner (rf) |
|
$ 123.70 | |||||
| 15 | 3191326 | Tubing, Gas Burner (lf) |
|
- | |||||
| 16 | 3191325 | Tubing, Gas Burner (rr) |
|
- | |||||
| 17 | 3191327 | Tubing, Gas Burner (lr) |
|
- | |||||
| 18 | 3191462 | Shield, Heat (2) |
|
- | |||||
| 19 | 3192491 | Bracket, Manifold |
|
- | |||||
| 21 | 3177120 | Regulator, Pressure |
|
- | |||||
| 22 | 3192499 | Burner Box |
|
- | |||||
| 27 | WP8053421 | Module, Spark (Replaces: 8053421) |
|
Immediately | $ 166.02 | ||||
| 28 | 8053420 | Module, Spark |
|
- | |||||
| LIT3191827 | Installation Instructions |
|
- | ||||||
| W10392007 | Power Cord (Replaces: 3192231) |
|
$ 96.25 | ||||||
| 3191937 | Seal, Foam-cooktop |
|
- | ||||||
| 4167077 | Tinnerman Nut |
|
- | ||||||
| 8186533 | Bracket (Replaces: 3183401) |
|
$ 79.60 | ||||||
| WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | |||||
| 4173634 | Bushing |
|
$ 5.83 | ||||||
| 3148443 | Ground Screw |
|
- | ||||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| LIT3192100 | Wiring Diagram |
|
- | ||||||
| LIT3191828 | Use & Care Guide |
|
- | ||||||
| 3191418 | Harness, Jumper |
|
- | ||||||
| 3192230 | Harness, Ignitor 28`` (2) |
|
- | ||||||
| 3192229 | Harness, Ignitor 15`` (2) |
|
- | ||||||
| 3192261 | Conversion Kit Natural Gas To L.p. |
|
$ 51.26 | ||||||
| 3188310 | Hardware, Mounting |
|
- |
