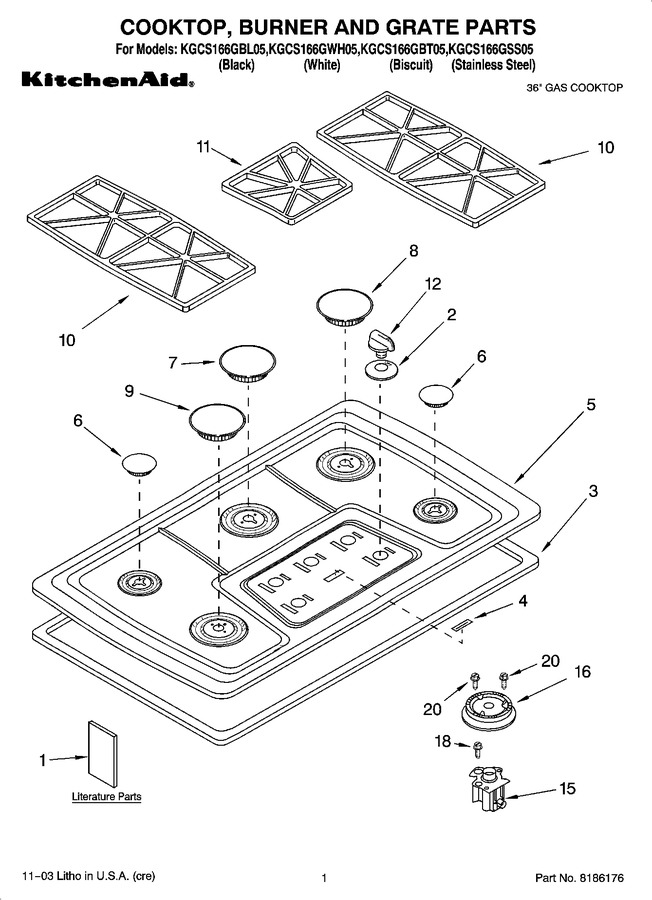

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3193071 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT4455834 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3192099 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3192742 | Literature Parts (lp Conversion Instructions) |
|
- | |||||
| 2 | WP4457192 | Collar, Knob (black) (Replaces: 3192164) |
|
$ 52.13 | |||||
| 2 | 3192165 | Collar, Knob (white) |
|
- | |||||
| 2 | 3192167 | Collar, Knob (biscuit) |
|
- | |||||
| 3 | 3193091 | Seal, Foam |
|
- | |||||
| 4 | 3191920 | Nameplate (biscuit) |
|
- | |||||
| 4 | 3191516 | Nameplate (white) |
|
- | |||||
| 4 | 3191514 | Nameplate (black) |
|
$ 53.29 | |||||
| 5 | 3191295 | Cooktop (biscuit) |
|
- | |||||
| 5 | 3191256 | Cooktop (white) |
|
- | |||||
| 5 | 3191255 | Cooktop (black) |
|
- | |||||
| 5 | 3191258 | Cooktop (stainless Steel) |
|
- | |||||
| 6 | 3192486 | Cap, (rf) (lr) (use W/stainless Steel Model) |
|
$ 33.24 | |||||
| 6 | 3191730 | Cap, (rf) (lr) (biscuit) |
|
- | |||||
| 6 | 3191728 | Cap, (rf) (lr) (black) |
|
$ 33.65 | |||||
| 6 | 3191729 | Cap, (rf) (lr) (white) |
|
- | |||||
| 7 | 3192487 | Cap, (cr) (use W/stainless Steel Model) |
|
$ 34.52 | |||||
| 7 | 3191731 | Cap, (cr) (black) |
|
$ 35.27 | |||||
| 7 | 3191732 | Cap, (cr) (white) |
|
- | |||||
| 7 | 3191733 | Cap, (cr) (biscuit) |
|
- | |||||
| 8 | 3191736 | Cap, (rr) (biscuit) |
|
- | |||||
| 8 | 3191735 | Cap, (rr) (white) |
|
$ 43.51 | |||||
| 8 | 3191734 | Cap, (rr) (black) |
|
$ 41.09 | |||||
| 8 | 3192488 | Cap, (rr) (use W/stainless Steel Model) |
|
$ 40.03 | |||||
| 9 | 3191738 | Cap, (lf) (white) |
|
- | |||||
| 9 | 3191739 | Cap, (lf) (biscuit) |
|
- | |||||
| 9 | 3191737 | Cap, (lf) (black) |
|
$ 44.65 | |||||
| 9 | 3192489 | Cap, (lf) (use W/stainless Steel Model) |
|
- | |||||
| 10 | 4456437 | Grate, Burner (biscuit) |
|
- | |||||
| 10 | 4456435 | Grate, Burner (black) |
|
- | |||||
| 10 | 4456436 | Grate, Burner (white) |
|
- | |||||
| 10 | WP9759505 | Grate, Burner (use W/stainless Steel Model) (Replaces: 4456438) |
|
$ 189.84 | |||||
| 11 | 4456446 | Grate, Filler (use W/stainless Steel Model) |
|
- | |||||
| 11 | 4456445 | Grate, Filler (biscuit) |
|
- | |||||
| 11 | 4456443 | Grate, Filler (black) |
|
- | |||||
| 11 | 4456444 | Grate, Filler (white) |
|
- | |||||
| 12 | 3191923 | Knob, Control (4) (white) |
|
$ 5.84 | |||||
| 12 | 3191925 | Knob, Control (4) (biscuit) |
|
$ 12.21 | |||||
| 12 | WP3191922 | Knob, Control (4) (black) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10155786 | Holder, Orifice (turbi) (Replaces: 4456622) |
|
Immediately | $ 102.16 | ||||
| 15 | WPW10155784 | Holder, Orifice (semi Rapid) (Replaces: 4456620) |
|
Immediately | $ 98.35 | ||||
| 15 | WPW10155785 | Holder, Orifice (rapid) (Replaces: 4456619) |
|
$ 102.43 | |||||
| 15 | WPW10128448 | Holder, Orifice (auxi) (Replaces: 4456621) |
|
Immediately | $ 100.54 | ||||
| 16 | WP4455981 | Head, Burner (12k) (Replaces: 4455981) |
|
Immediately | $ 78.77 | ||||
| 16 | WP4455980 | Head, Burner (9k) (Replaces: 4455980) |
|
$ 55.89 | |||||
| 16 | 4455849 | Head, Burner (turbi) |
|
$ 47.68 | |||||
| 16 | 4455979 | Head, Burner (6k) |
|
$ 28.52 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 |
