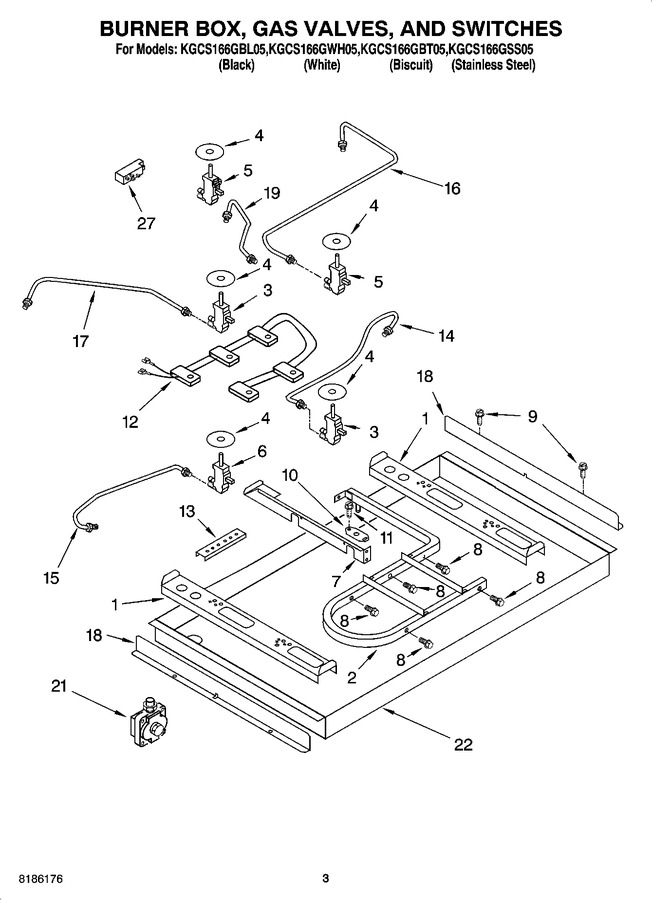

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203756		Rail, Burner   (Replaces: 3191557)		Appelez-nous	-
2	6610013		Pipe, Manifold		Appelez-nous	-
3	WP4456817		Valve, Gas Burner (black (2))   (Replaces: 4456817)				$ 286.38
3	4456818		Valve, Gas Burner (bronze)				$ 231.30
3	WP4456816		Valve, Gas Burner (red (2))   (Replaces: 4456816)			Immediately	$ 286.55
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	N/A		Valve		Appelez-nous	-
6	N/A		Valve		Appelez-nous	-
7	3192819		Rail, Center		Appelez-nous	-
8	8523704		Bolt, Gas Valve		Appelez-nous	-
9	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
10	3192491		Bracket, Mainfold		Appelez-nous	-
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
12	WP4456901		Harness & Switches   (Replaces: 4456901)				$ 217.02
13	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
13	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
14	3191324		Tubing, Gas Burner (rf)				$ 123.70
15	3191326		Tubing, Gas Burner (lf)		Appelez-nous	-
16	3191325		Tubing, Gas Burner (rr)		Appelez-nous	-
17	3191327		Tubing, Gas Burner (lr)		Appelez-nous	-
18	3191462		Shield, Heat (2)		Appelez-nous	-
19	3191332		Tubing, Gas Burner (cr)		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	4456786		Burner Box		Appelez-nous	-
27	N/A		Wiring Harness Parts		Appelez-nous	-
27	4456626		Harness, Ignitor 15`` (2)				$ 66.34
27	WPW10110486		Module, Spark   (Replaces: 8522424)				$ 285.33
27	W10392007		Cord, Power   (Replaces: 3192231)				$ 96.25
27	4173634		Bushing				$ 5.83
27	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
27	4455918		Hardware, Mounting		Appelez-nous	-
27	WP3192741		Conversion Kit Natural Gas To L.p.   (Replaces: 3192741)				$ 41.81
27	8285402		Wire, Ground		Appelez-nous	-
27	4456627		Harness, Ignitor 28``				$ 189.13
