SELECT A DIAGRAM

01 - Cover


02 - Control


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack

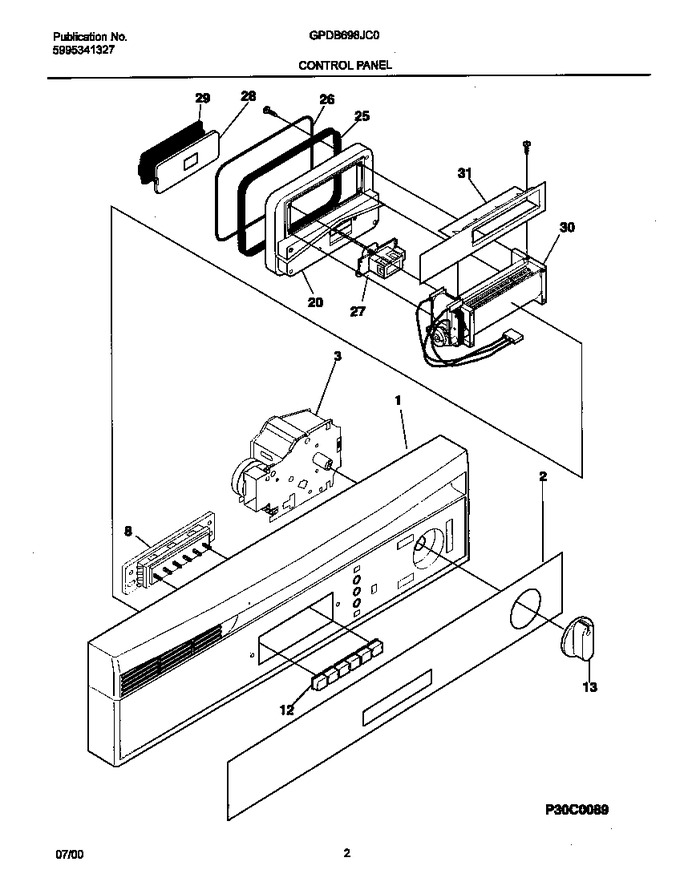

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368106		Panel-control,black		Appelez-nous	-
2	154378703		Insert-control Panel				$ 75.65
3	154367901		Timer		Appelez-nous	-
8	154372901		Switch-selector, 6 Button		Appelez-nous	-
12	154253703		Pushbutton, Black, (6)		Appelez-nous	-
13	154253603		Knob-timer, Black		Appelez-nous	-
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
*28040	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*28041	154131203		Shield-timer		Appelez-nous	-
*28042	154248601		Shield,switch		Appelez-nous	-
*28043	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
*28044	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*28045	154366301		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
