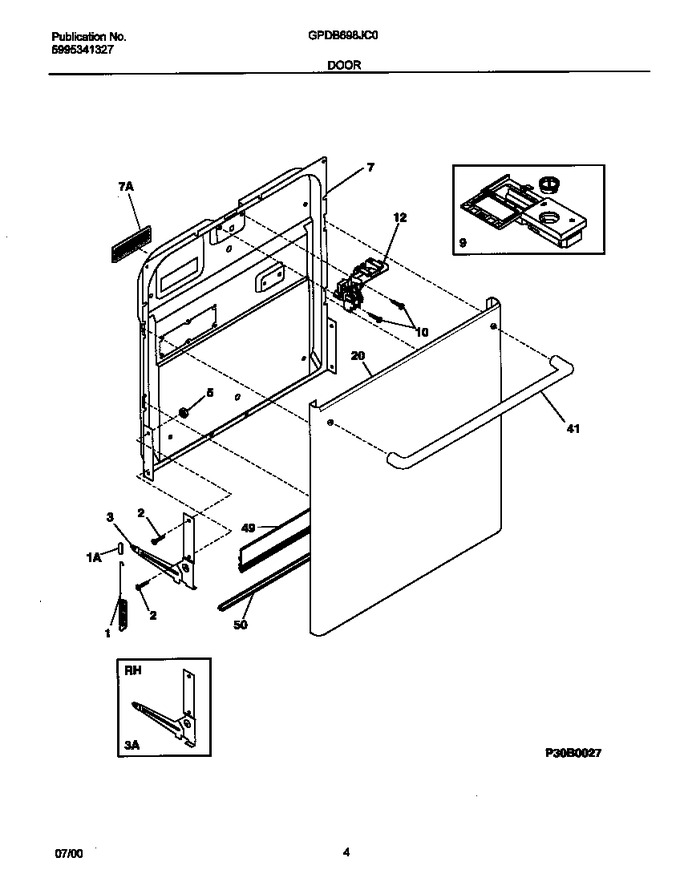

SELECT A DIAGRAM

01 - Cover


02 - Control


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154325201		Spring Linkage,(2)			Immediately	$ 27.27
1	154430601		Spring,door ,(2)   (Replaces: 154365701)			Immediately	$ 48.12
2	154093301		Screw-arm Assembly, (4)			Immediately	$ 2.12
3	5304409912		Arm Assembly, Lh   (Replaces: 154325304)				$ 59.54
3	5304409912		Arm Assembly, Rh   (Replaces: 154325303)				$ 59.54
5	154079601		Nut-arm Assembly (4)				$ 0.41
7	154226601		Liner Grate		Appelez-nous	-
7	154299002		Door-inner Assembly		Appelez-nous	-
9	154574401		Dispenser-det/rinse Aid   (Replaces: 154230101)			Immediately	$ 102.77
10	154103702		Screw-latch Mtg, (2)				$ 13.46
12	5304442175		Latch Assembly, Black   (Replaces: 154361203)			Immediately	$ 151.49
20	154359104		Door,stainless		Appelez-nous	-
41	154207004		Towel Bar Assembly				$ 340.25
49	809006501		Gasket-door,bottom   (Replaces: 154297602)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
*28046	154211501		Pin,arm		Appelez-nous	-
*28047	154294701		Screw, 7 Plaas .375, (6), Disp. Assembly				$ 9.22
*28048	154222201		Screw,shoulder				$ 3.17
*28049	154213801		Cleaner, Stainless Steel		Appelez-nous	-
*28050	154227807		Thermostat-temp Hotrinse				$ 40.48
*28051	154227808		Thermostat-temp Boost				$ 47.41
*28052	5304538695		Insulation,door   (Replaces: 154253201)		Appelez-nous	-
*28053	154320301		Clamp-wire,drip Loop				$ 62.69

    View Diagram in Separate Window       Print Part List
