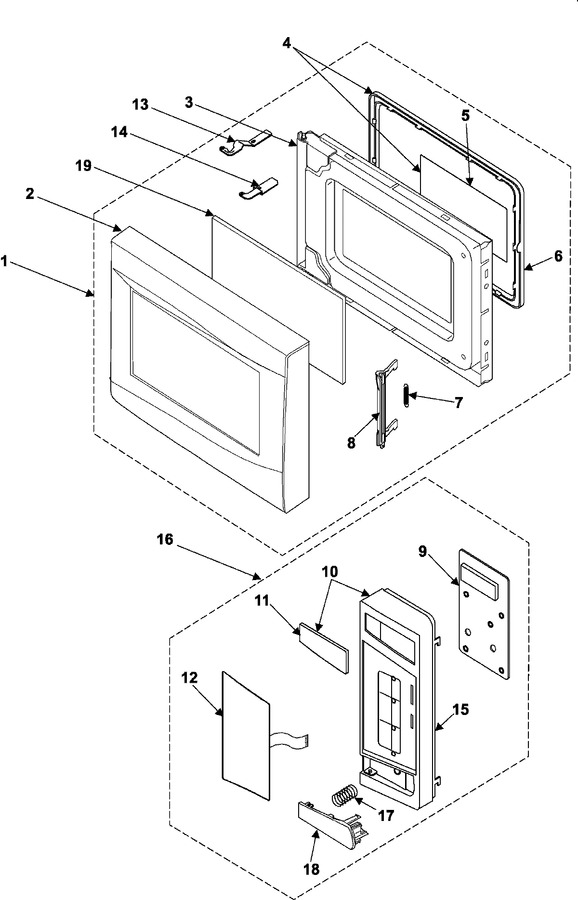

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE94-00718E		Assy Door;me1240sc,silver,1.2		Appelez-nous	-
2	DE64-00529E		Door-a		Appelez-nous	-
3	DE94-00428A		Assy Door-e(coating)		Appelez-nous	-
4	DE94-00427A		Assy Door-sub		Appelez-nous	-
5	DE64-00248A		Film-door		Appelez-nous	-
6	DE64-00184A		Door-c		Appelez-nous	-
7	DE61-00193A		Key, Spring		Appelez-nous	-
8	DE64-00210A		Door-key		Appelez-nous	-
9	W10127123		Assy Pcb Parts		Appelez-nous	-
10	DE94-00691D		Assy Control-panel;120v60hz,me		Appelez-nous	-
11	DE64-00533A		Window-display		Appelez-nous	-
12	DE34-00145F		Switch Membrane		Appelez-nous	-
13	DE61-00246A		Hinge-door Upper		Appelez-nous	-
14	DE61-00247A		Hinge-door Lower		Appelez-nous	-
15	DE64-00528D		Control-panel				$ 81.45
16	DE94-00710F		Assy Control-box;120v60hz,me12		Appelez-nous	-
17	DE61-70076A		Spring, Button				$ 20.70
18	DE64-00532E		Button-push		Appelez-nous	-
19	DE63-00042A		Screen-door		Appelez-nous	-
