SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly

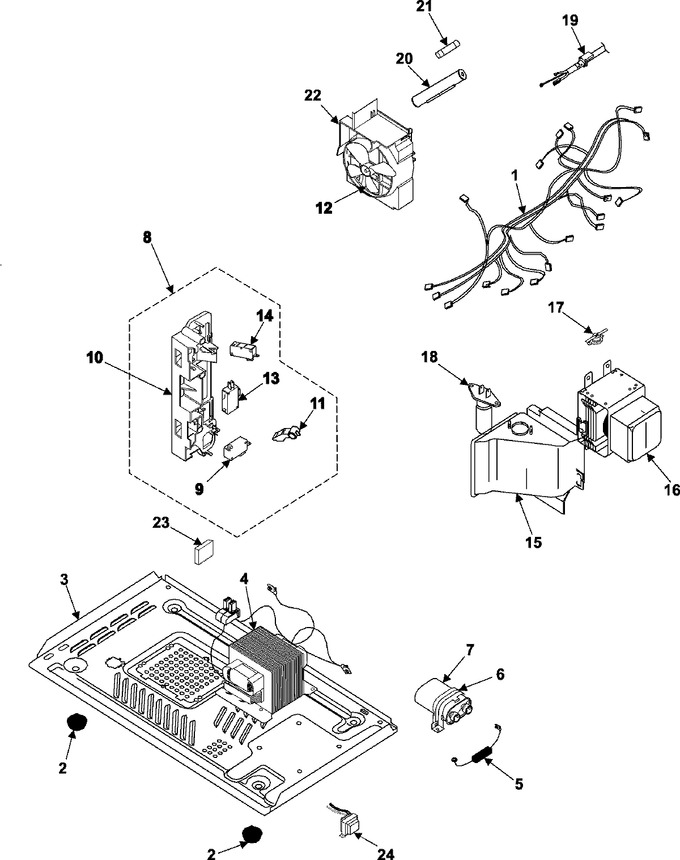

03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE39-00278A | Wire Harness-a |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | DE80-00024D | Base-plate |
|
- | |||||
| 4 | DE26-00090A | Trans H.v |
|
- | |||||
| 5 | DE91-70063D | Diode-rectifier (Replaces: Y0402001554) |
|
Immediately | $ 15.89 | ||||
| 6 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 7 | 2501-001015 | Capacitor |
|
- | |||||
| 8 | DE96-00115D | Assy Body Latch |
|
- | |||||
| 9 | 3405-001055 | Switch-micro |
|
$ 17.58 | |||||
| 10 | DE72-00138A | Body-latch |
|
- | |||||
| 11 | DE66-00088A | Lever-switch |
|
- | |||||
| 12 | DE31-90057A | Blade-fan |
|
$ 17.58 | |||||
| 13 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 14 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 15 | DE71-00164A | Cover-air |
|
- | |||||
| 16 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 17 | DE47-20033A | Thermostat |
|
$ 16.82 | |||||
| 18 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 19 | DE39-00040E | Assy Power Cord |
|
- | |||||
| 20 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 21 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 22 | DE96-00100A | Assy-motor Fan |
|
- | |||||
| 23 | DE63-90035G | Cushion-rubber |
|
- | |||||
| 24 | DE26-00037A | Trans-l.v |
|
- |
