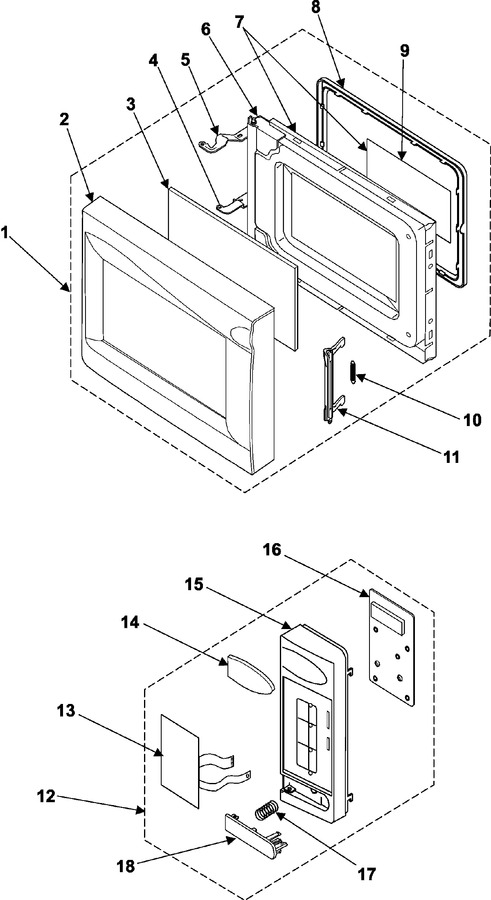

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00539C | Assy Door |
|
- | |||||
| 2 | DE64-00185C | Door-a |
|
- | |||||
| 3 | DE63-00042A | Screen-door |
|
- | |||||
| 4 | DE61-00247A | Hinge-door Lower |
|
- | |||||
| 5 | DE61-00246A | Hinge-door Upper |
|
- | |||||
| 6 | DE94-00428A | Assy Door-e(coating) |
|
- | |||||
| 7 | DE94-00427A | Assy Door-sub |
|
- | |||||
| 8 | DE64-00184A | Door-c |
|
- | |||||
| 9 | DE64-00248A | Film-door |
|
- | |||||
| 10 | DE61-00193A | Key, Spring |
|
- | |||||
| 11 | DE64-00210A | Door-key |
|
- | |||||
| 12 | Y00000000 | See Note Assy Control Panel Currently Unavailable |
|
- | |||||
| 13 | DE34-00125D | Switch Membrane |
|
- | |||||
| 14 | DE67-40175A | Window-display |
|
- | |||||
| 15 | DE72-70209H | Control-panel |
|
- | |||||
| 16 | YRAN2LED132 | Assy Pcb Parts |
|
- | |||||
| 17 | DE61-70076A | Spring, Button |
|
$ 20.70 | |||||
| 18 | DE66-20281G | Button-push |
|
- |
