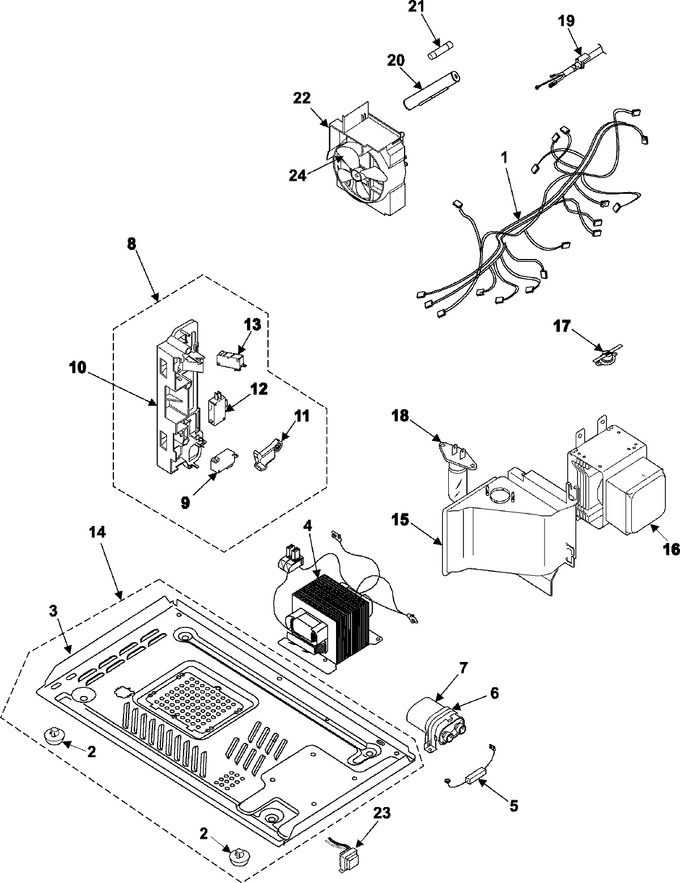

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE39-00278A | Wire Harness-a | 3 |
|
- | ||||
| 2 | DE61-40066A | Foot | 3 |
|
$ 17.58 | ||||
| 3 | DE80-10002D | Base-plate | 3 |
|
- | ||||
| 4 | DE26-00061B | Trans-h.v | 3 |
|
$ 181.92 | ||||
| 5 | 555555 | Diode-h.v (Replaces: DE59-40001A) | 3 |
|
$ 151.94 | ||||
| 6 | DE61-50106A | Bracket, Capacitor | 3 |
|
- | ||||
| 7 | 2501-001015 | Capacitor | 3 |
|
- | ||||
| 8 | DE96-00115D | Assy Body Latch | 3 |
|
- | ||||
| 9 | 3405-001055 | Switch-micro | 3 |
|
$ 17.58 | ||||
| 10 | DE72-00138A | Body-latch | 3 |
|
- | ||||
| 11 | DE66-00088A | Lever-switch | 3 |
|
- | ||||
| 12 | 3405-001033 | Switch-micro | 3 |
|
Immediately | $ 17.58 | |||
| 13 | 3405-001034 | Switch, Micro (125/250 Vac) | 3 |
|
Immediately | $ 14.85 | |||
| 14 | DE96-00121D | Assy Base Plate-sub | 3 |
|
- | ||||
| 15 | DE71-00164A | Cover-air | 3 |
|
- | ||||
| 16 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) | 3 |
|
$ 282.22 | ||||
| 17 | DE47-20173A | Thermostat | 3 |
|
$ 21.43 | ||||
| 18 | 4713-001012 | Lamp-incandescent | 3 |
|
$ 40.81 | ||||
| 19 | DE39-20146E | Assy Power Cord | 3 |
|
- | ||||
| 20 | DE47-40025A | Holder, Fuse | 3 |
|
- | ||||
| 21 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) | 3 |
|
Immediately | $ 10.31 | |||
| 22 | DE96-00100A | Assy-motor Fan | 3 |
|
- | ||||
| 22 | DE31-10155T | Motor-fan |
|
$ 91.55 | |||||
| 23 | DE26-00037A | Trans-l.v | 3 |
|
- | ||||
| 24 | DE31-90057A | Blade-fan |
|
$ 17.58 |
