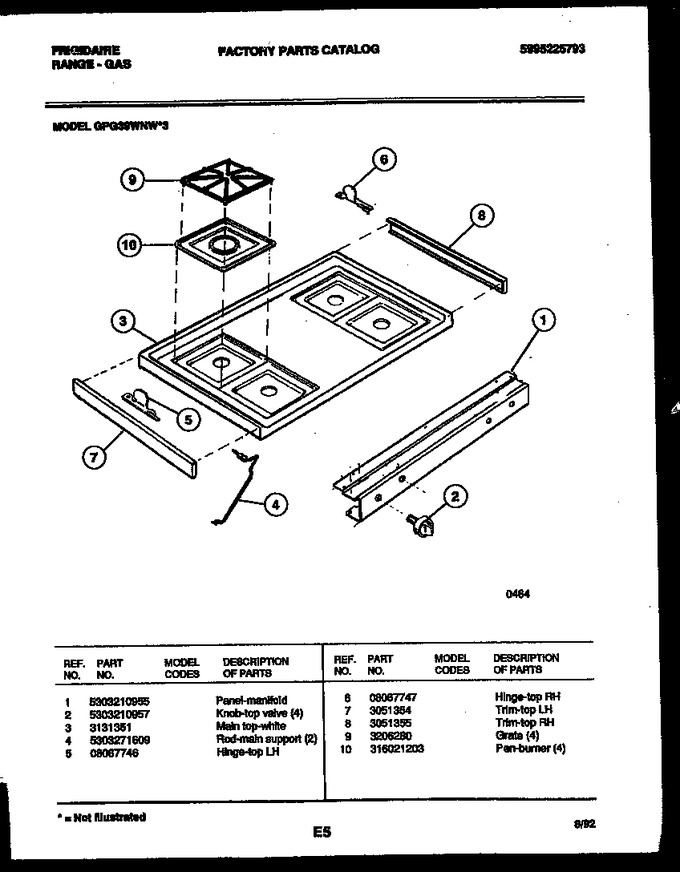

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210955 | Panel-manifold |
|
- | |||||
| 2 | 5303210957 | Knob-top Valve (4) |
|
- | |||||
| 3 | 3131351 | Main Top,white |
|
- | |||||
| 4 | 5303271609 | Rod-main Support (2) |
|
- | |||||
| 5 | 08067746 | Hinge-top Lh |
|
- | |||||
| 6 | 08067747 | Hinge-top Rh |
|
- | |||||
| 7 | 3051354 | Trim-top Lh |
|
- | |||||
| 8 | 3051355 | Trim-top Rh |
|
- | |||||
| 9 | 3206280 | Grate (4) |
|
- | |||||
| 10 | 316021203 | Pan Burner (4) |
|
- |
