02 - Splasher Control


03 - Cooktop Parts


04 - Lower Oven Door Parts


05 - Burner, Manifold And Gas Control


06 - Lower Body Parts


07 - Control Panel


08 - Power Control


09 - Upper Body Parts


10 - Upper Oven Door Parts


11 - Drawer Parts

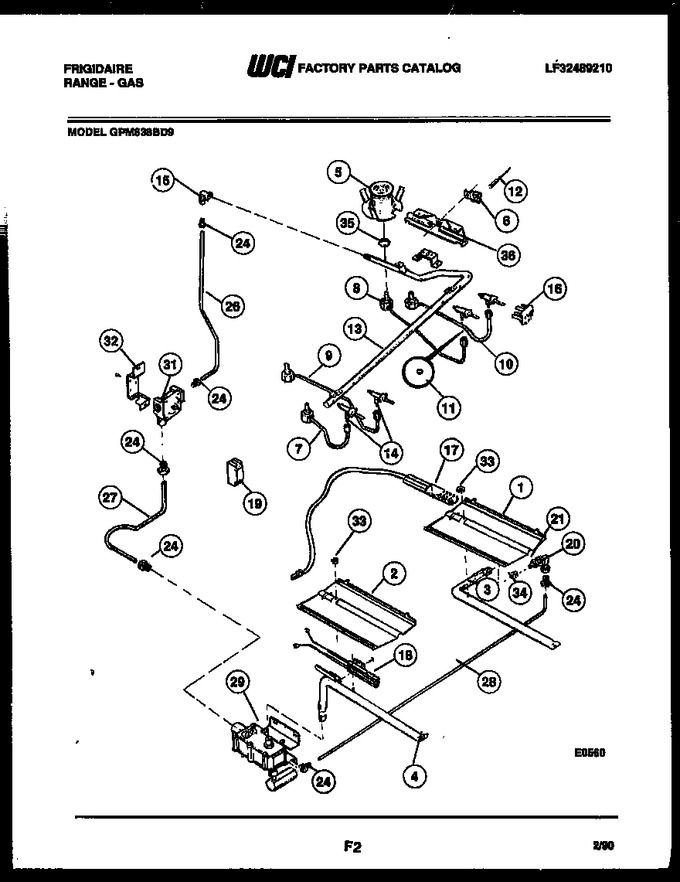

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08067925		Baffle Broiler		Appelez-nous	-
2	08067926		Baffle-ov. Burner		Appelez-nous	-
3	08067935		Burner-broiler				$ 142.59
4	08067936		Burner-oven		Appelez-nous	-
5	08067937		Burner-top (4)		Appelez-nous	-
6	3018617		Retainer-igniter (4)		Appelez-nous	-
7	08067938		Burner Tube (lf)		Appelez-nous	-
8	08067939		Burner Tube (rr)		Appelez-nous	-
9	08067940		Burner Tube (lr)		Appelez-nous	-
10	08067941		Burner Tube (rf)		Appelez-nous	-
11	08067945		Ferrule (4)		Appelez-nous	-
12	3131105		Igniter-top Burner 50`` (4)		Appelez-nous	-
13	08067949		Manifold Pipe		Appelez-nous	-
14	3017846		Valve 3 Pos. Locktype (4)		Appelez-nous	-
15	08067948		Elbow 1/2 Np To 9/16-24		Appelez-nous	-
16	08067943		Switch-igniter (3 Pos.) (4)		Appelez-nous	-
17	08067970		Igniter-broiler Burner		Appelez-nous	-
18	08067971		Igniter-oven		Appelez-nous	-
19	3200669		Spark Module		Appelez-nous	-
20	08067979		Mixer-elbow (broil)		Appelez-nous	-
21	08067981		Hex Nut		Appelez-nous	-
24	08067946		Fitting Loxit		Appelez-nous	-
26	08068004		Tube (reg/manifold Pipe)		Appelez-nous	-
27	08068005		Tube (valve/reg.)		Appelez-nous	-
28	08068006		Tube-valve/mixer Elbow		Appelez-nous	-
29	08068007		Valve-safety (dual)		Appelez-nous	-
31	166T011P06		Control-regul.		Appelez-nous	-
32	08067934		Brkt. Regul.		Appelez-nous	-
33	08011725		Nut		Appelez-nous	-
34	08068015		Spud No. 50 Orifice		Appelez-nous	-
35	08067951		Nut-special (4)		Appelez-nous	-
36	3206267		Channel				$ 46.04
*29863	K1164545		Rivet-pop		Appelez-nous	-
15A	08067952		Nut Compression (4) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
