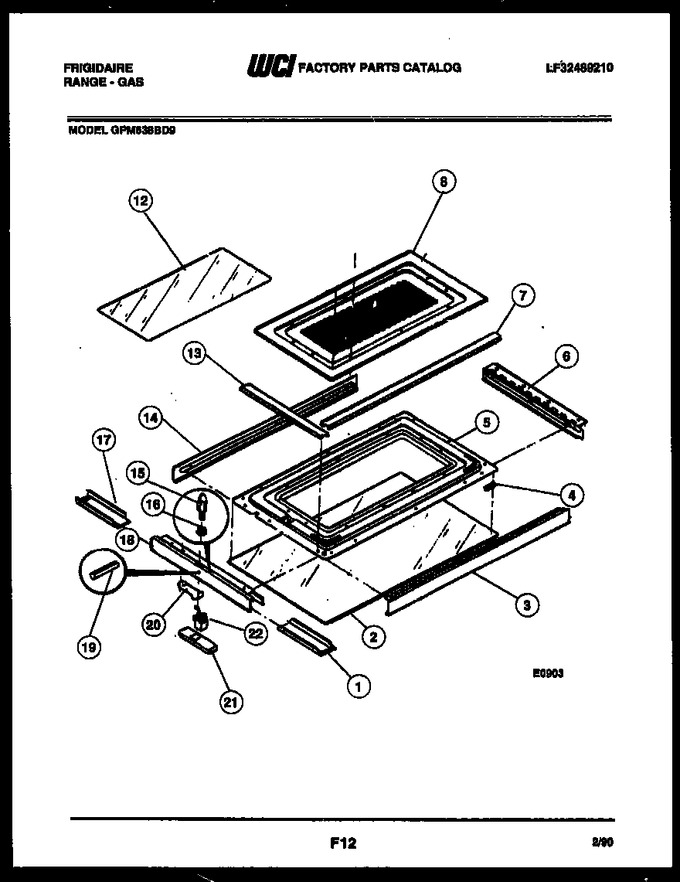

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8012069		Insert-door Bottom		Appelez-nous	-
2	8037914		Glass-door Outer		Appelez-nous	-
3	8010438		Extrusion-bottom		Appelez-nous	-
4	8010437		Spacer-3/4 X 3/4 X 4`` (4)		Appelez-nous	-
5	8010436		Frame-door		Appelez-nous	-
6	8010435		Extrusion-hinge		Appelez-nous	-
7	8010433		Seal-door Top & Bottom		Appelez-nous	-
8	8010432		Panel-door Seal		Appelez-nous	-
12	8010431		Liner-door Seal		Appelez-nous	-
13	8010434		Seal-door Side		Appelez-nous	-
14	8010439		Extrusion-top		Appelez-nous	-
15	8010447		Screw-door Strike (hex)		Appelez-nous	-
16	8009182		Nut-hex		Appelez-nous	-
17	8012077		Insert-top		Appelez-nous	-
18	8037917		Extrusion-right		Appelez-nous	-
19	8010446		Pin-roll		Appelez-nous	-
20	8010445		Spring-door Handle		Appelez-nous	-
21	8011737		Handle-complete		Appelez-nous	-
22	8011738		Hook Handle		Appelez-nous	-
*29879	8011737		Handle Complete W/item 21 & 22		Appelez-nous	-
*29879	8010406		Screw-door Assy. (22)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
