SELECT A DIAGRAM

02 - Freezer Door Parts

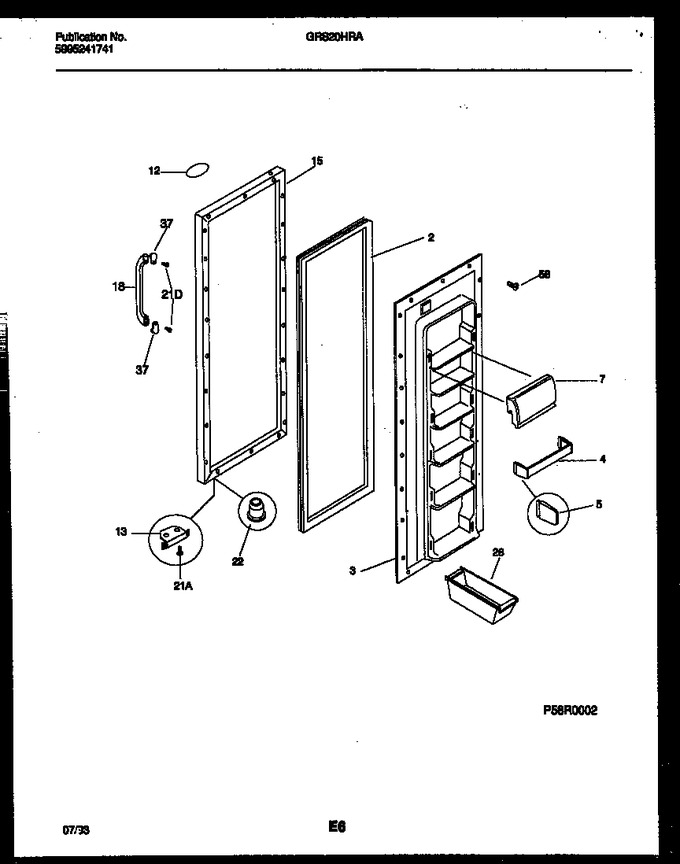

03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Controls-refrigerator And Controls-


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734312		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	5303288953		Panel-inner Door, Refr		Appelez-nous	-
4	215366046		Rack Door, (5)		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	5303300714		Door-dairy		Appelez-nous	-
12	215731801		Nameplate Assy, White, W/tape		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215475401		Panel-refr Door, White, W/ Foam Insul		Appelez-nous	-
18	215339601		Handle-door, White		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215361401		Trim, Handle, White		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*59874	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
