SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Controls-refrigerator And Controls-


07 - System And Automatic Defrost Parts

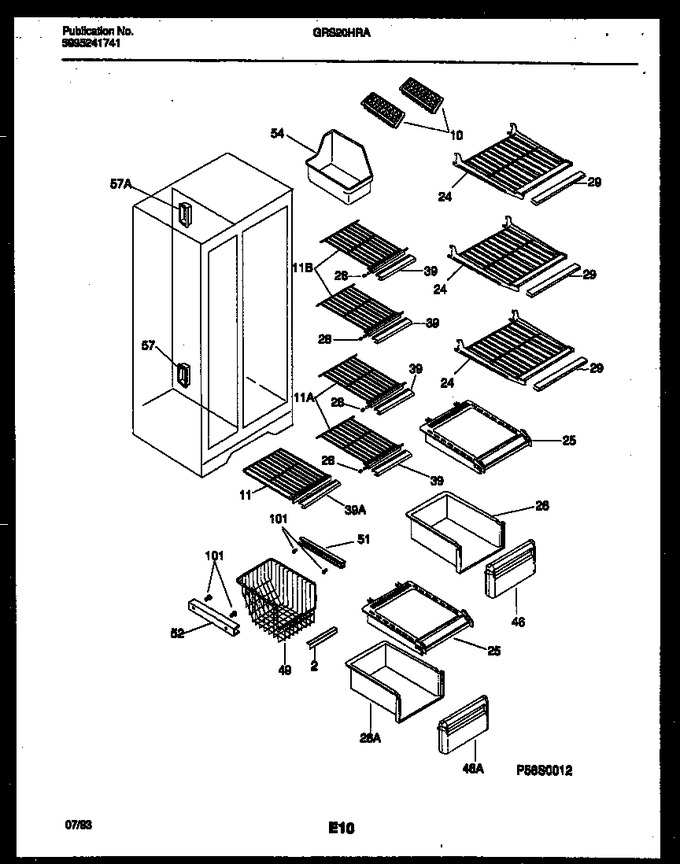

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303300707		Trim-basket		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303288959		Shelf-freezer, Sliding Wire		Appelez-nous	-
24	5303291258		Shelf-cantilever, Refr, (3)		Appelez-nous	-
25	5303288972		Cover-storage Pan, Upper & Lower		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
28	08013638		Cap-protector		Appelez-nous	-
29	5303300712		Trim-refr Shelf, (3)		Appelez-nous	-
39	5303300711		Trim-frzr Shelf (4)		Appelez-nous	-
46	5303300718		Front-storage Pan, Upper		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
54	5303212918		Container-ice				$ 104.66
57	5303271653		Ferrule-inner				$ 20.27
101	5308007097		Screw, Cr Truss Head, 8-15(a) X 3/4		Appelez-nous	-
*59881	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303288962		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	5303288963		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
26A	5303288968		Pan-storage, Lower				$ 204.84
39A	5303300710		Trim-frzr Shelf		Appelez-nous	-
46A	5303300717		Front-storage Pan, Lower		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
