SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Body Parts


05 - Power Control

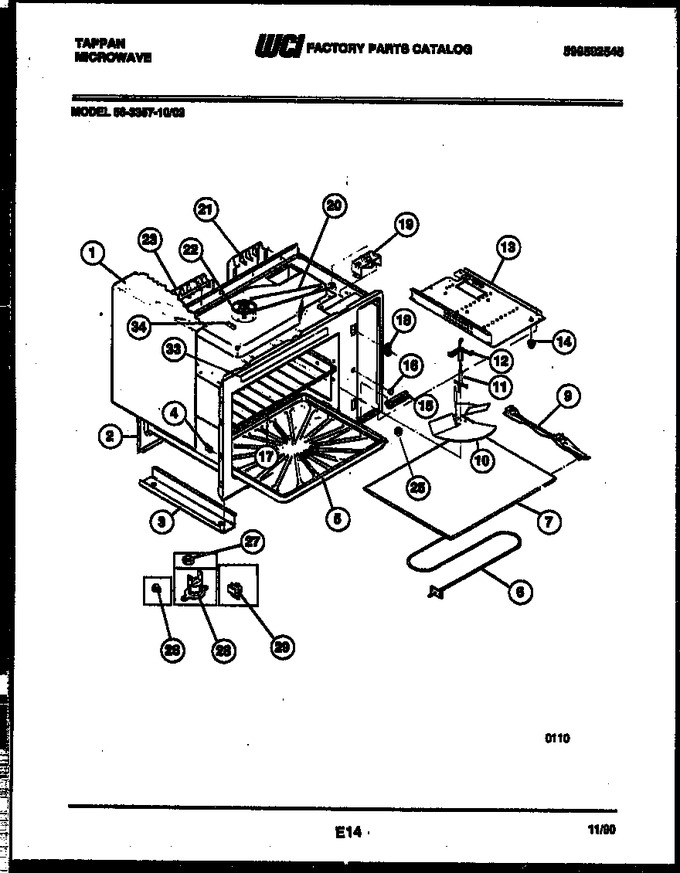

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303203254		Wrapper-woodgain		Appelez-nous	-
3	5303011773		Channel Base, Lh		Appelez-nous	-
4	3203010		Clip - Hinge   (Replaces: 5303012323)				$ 14.89
5	5303011698		Tray, Oven		Appelez-nous	-
6	5303012207		Element - Browner		Appelez-nous	-
7	5303012681		Glass - Stirrer Cover		Appelez-nous	-
9	5303011776		Lh Channel-glass Support		Appelez-nous	-
10	5308037708		Fan Stirrer		Appelez-nous	-
11	5303202875		Support-stirrer		Appelez-nous	-
12	5303011826		Collar-stirrer		Appelez-nous	-
13	5303210624		Channel-base-rh		Appelez-nous	-
14	5303014097		Spacer, Foot, (4)		Appelez-nous	-
15	5303011555		Bracket-control Panel		Appelez-nous	-
16	5308037644		Grommet-door		Appelez-nous	-
17	5303206085		Rack-oven		Appelez-nous	-
18	5303200551		Bezel-latch (2)		Appelez-nous	-
19	5303091482		Motor W/ Belt		Appelez-nous	-
20	5303011495		Belt				$ 23.31
21	5303012196		Duct Air (mag)		Appelez-nous	-
22	5303013647		Pulley		Appelez-nous	-
23	5303201371		Duct-air Cavity		Appelez-nous	-
25	5303201365		Plug-button		Appelez-nous	-
26	5308037665		Plug - Button Tray		Appelez-nous	-
27	5303131215		Fastener Nut (4)		Appelez-nous	-
28	5303202107		Switch-thermal Cutout		Appelez-nous	-
29	5303014221		Support Rack (8)		Appelez-nous	-
33	5303018849		Label Cooking Guide		Appelez-nous	-
34	5308014510		Spacer-wrapper (2)		Appelez-nous	-
*43194	5303011685		Oven Light Shield		Appelez-nous	-
*43194	5303091100		Screw-wrapper (30)		Appelez-nous	-
22A	5303014620		Washer (non-illustrated)		Appelez-nous	-
23A	5303012322		Fastener-wrpr (2) (non-illustrated)		Appelez-nous	-
29A	5308037640		Duct-air (foam) (non-illustrated)		Appelez-nous	-
9A	5303011777		Rh Channel-glass Support		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
