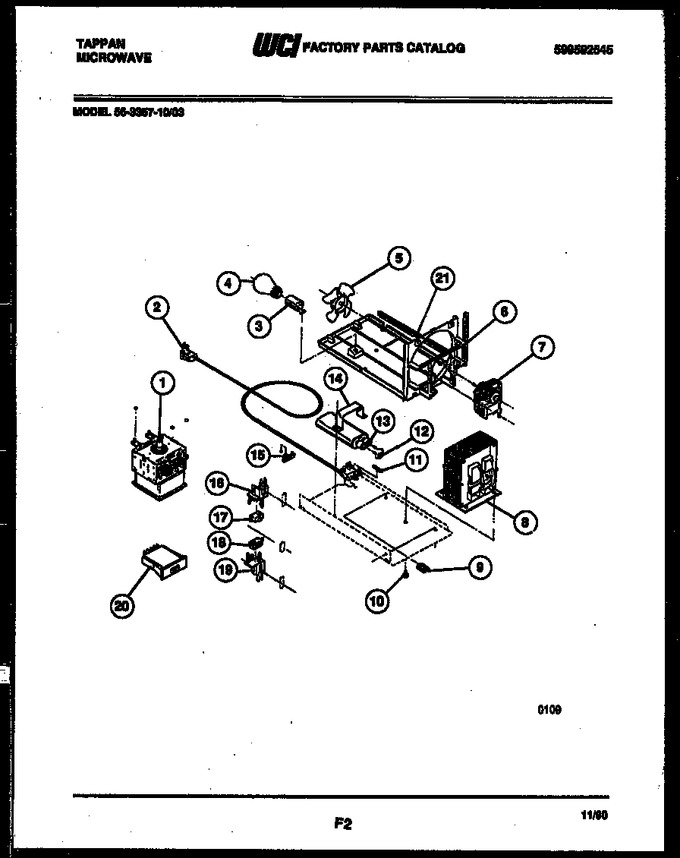

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206781 | Magnetron |
|
- | |||||
| 2 | 5308037629 | Power Cord |
|
- | |||||
| 3 | 5303091197 | Socket - Light |
|
- | |||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5303203192 | Fan-blade |
|
- | |||||
| 6 | 5303012194 | Air Duct-fan |
|
- | |||||
| 7 | 5308037636 | Fan-motor |
|
- | |||||
| 8 | 5308037626 | Transformer |
|
- | |||||
| 9 | 5308037677 | Fastener (3) |
|
- | |||||
| 10 | 5303013944 | Screw (4) |
|
- | |||||
| 11 | 5303011670 | Fuse-20 Amp |
|
- | |||||
| 12 | 5303091303 | Diode - Hv |
|
- | |||||
| 13 | 5308037624 | Capacitor |
|
- | |||||
| 14 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 15 | 5303091280 | Fuse-thermal Cutout |
|
- | |||||
| 16 | 5303011556 | Bracket-switch (upper) |
|
- | |||||
| 17 | 5303203636 | Switch, Interlock |
|
- | |||||
| 18 | 5303203636 | Switch, Interlock |
|
- | |||||
| 19 | 5303011556 | Bracket-switch (lower) |
|
- | |||||
| 20 | 5303204635 | Switch-monitor |
|
- | |||||
| 21 | 5303017864 | Seal-foam Cut To Size |
|
- | |||||
| 12A | 191T175F99 | Diagram-wiring (not For Purchase) (non-illustrated) |
|
- | |||||
| 20A | Q000198577 | Harness-main (non-illustrated) |
|
- | |||||
| 20B | 08037711 | Harness-browner (non-illustrated) |
|
- | |||||
| 20C | 08037647 | Insulator-hv Mag (non-illustrated) |
|
- |
