SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


06 - Shelf Parts


07 - Refrigerator & Freezer Controls


08 - System & Automatic Defrost

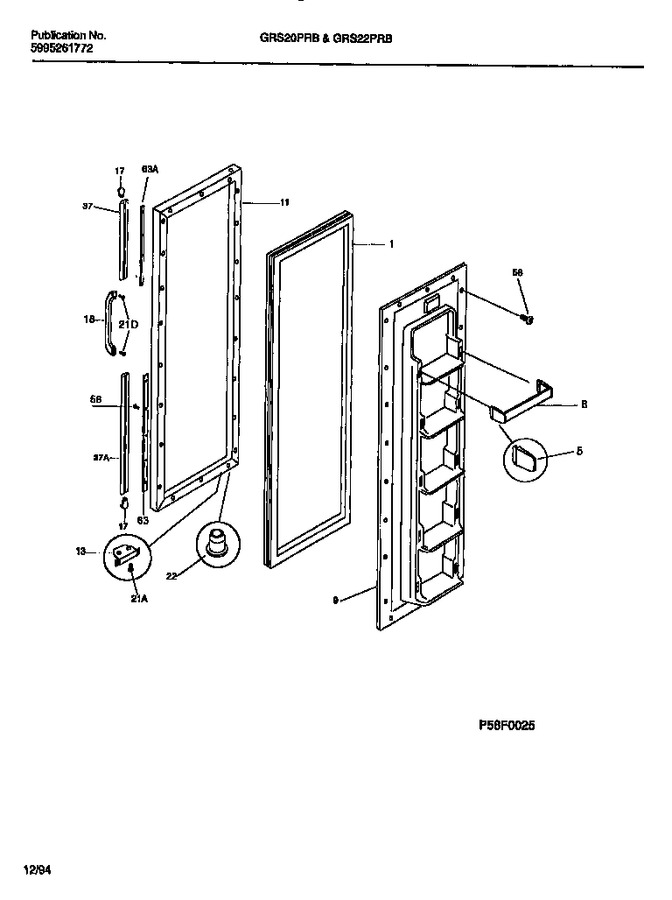

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
8	215366051		Rack, Door		Appelez-nous	-
9	215008201		Panel, Inner Door, Frzr		Appelez-nous	-
11	215520101		Panel, Frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
17	215100001		Handle End, White		Appelez-nous	-
18	215339601		Handle-door, White		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
37	215117408		Trim-handle, 15.88``, White, Upper		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
*37560	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*37561	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
37A	215117410		Trim-handle, 31.46``, White, Lower		Appelez-nous	-
63A	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
