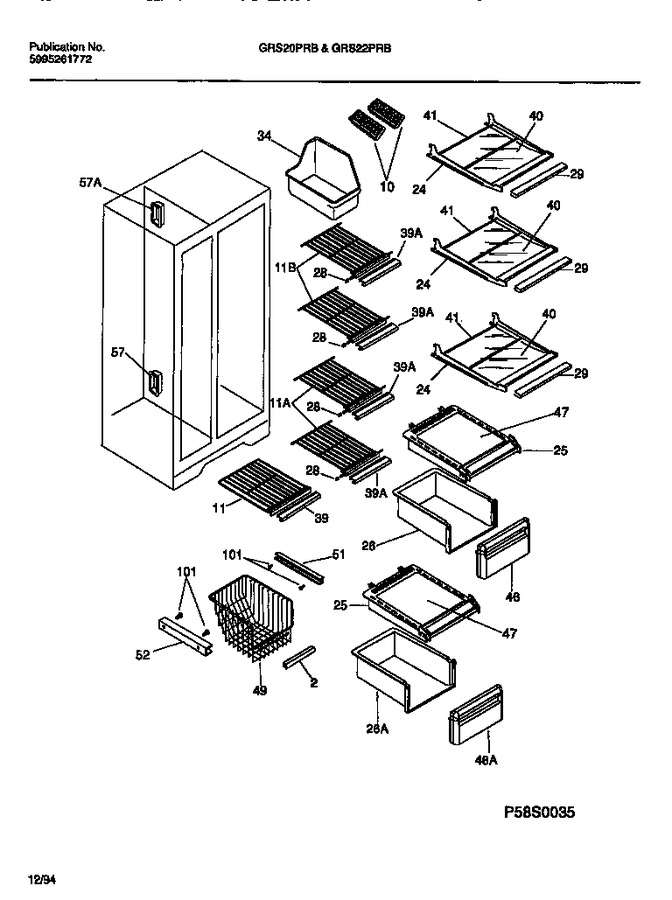

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303289518		Shelf-freezer,sliding Wire		Appelez-nous	-
24	215919137		Frame, Refr Shelf, Cantilever		Appelez-nous	-
25	5303289586		Trim-storage Pan Cvr (non-illustrated)		Appelez-nous	-
25	218147701		Cover-storage Pan,upper & Lower				$ 123.56
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		Cap-protector		Appelez-nous	-
29	215919515		Trim, Refr Shelf, Front, (3)		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
39	5303298152		Trim, Frzr Shelf		Appelez-nous	-
40	215723555		Glass, Refr Shelf, Clear				$ 91.19
41	215919815		Trim, Refr Shelf, Rear, (3)		Appelez-nous	-
46	215042005		Front, Storage Pan, Upper		Appelez-nous	-
47	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
47	215530500		Insert-pan Cover,plastic,white		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8ab X 3/4   (Replaces: 215005000)				$ 14.18
*37565	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303289504		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	215111701		Shelf, Freezer, Fixed Wire, (2)		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
39A	5303298153		Trim, Frzr Shelf		Appelez-nous	-
46A	215042004		Front, Storage Pan, Lower		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-
