Diagram for 01 - Body
01 - Body

Diagram for 02 - Control Panel/top Assembly
02 - Control Panel/top Assembly

Diagram for 03 - Door/drawer
03 - Door/drawer

Diagram for 04 - Door/drawer (at Series 13)
04 - Door/drawer (at Series 13)

Diagram for 05 - Oven/base
05 - Oven/base

No Diagram Image Available
06 - Supplemental Information

Diagram for 07 - Wiring Information
07 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74004550 Housing, Control Panel 10 Appelez-nous -
2 74010648 Panel, Front Control (blk) 10 Appelez-nous -
3 WP74009277 Thermostat   (Replaces: 74009277) 10 Special Order $ 287.67

3 7101P280-60 Screw W/washer (blk) 10 Appelez-nous -
4 WP7403P239-60 Switch, Infinite (lrg Element)   (Replaces: 7403P239-60) 10 In-Stock Immediately $ 35.10

4 WP7403P238-60 Switch, Infinite (sml Element)   (Replaces: 7403P238-60) 10 In-Stock Immediately $ 57.78

4 WP7101P309-60 Screw   (Replaces: 7101P309-60) 10 In-Stock Immediately $ 6.26

5 74003280 Knob, Thermostat 10 Special Order $ 16.24

6 74006106 Light, Indicator 10 Appelez-nous -
7 12001676 Receptacle Assy. 10 In-Stock Immediately $ 28.45

8 3801F251-51 Bracket, Cntl. Panel 10 Appelez-nous -
9 74010649 Panel, Backguard (wht) 10 Appelez-nous -
9 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

10 74007475 Bracket, Control Panel (r&l) 10 Appelez-nous -
11 WP7737P030-60 Knob, Switch   (Replaces: 7737P030-60) 10 Special Order $ 17.81

12 74001428 Spacer, Main Top 10 Appelez-nous -
13 3807F419-80 Support Upper Front Panel 10 Appelez-nous -
14 2002W105-81 Top, Main (wht) 10 Appelez-nous -
14 74003371 Hinge, Main Top (rod) 10 Appelez-nous -
14 W10124350 Not Required Part Or See Note Hinge,screw,prop Rod Not Used 12 Appelez-nous -
14 74004084 Prop Rod 10 Appelez-nous -
15 74004827 Clip, Top Locking 10 Appelez-nous -
16 WPW10196405 Bowl, Drip (8``-chr)   (Replaces: 74001213) 10 In-Stock Immediately $ 15.56

17 WPW10196406 Bowl, Drip (6``)(w/hole-chr)   (Replaces: 7725P015-60) 10 In-Stock Immediately $ 12.05

17 WPW10196406 Bowl, Drip (6``-chr)   (Replaces: 74001212) 10 In-Stock Immediately $ 12.05

18 WPW10345407 Element, Surface (6``)   (Replaces: 74007158) 10 In-Stock Immediately $ 141.79

19 WP9761346 Element, Surface (8``-5t)   (Replaces: 74007159) 10 In-Stock Immediately $ 94.16

20 7112P029-60 Clip 10 Appelez-nous -
21 8010P069-60 Spacer, Hinge (main Top) 10 Special Order $ 8.57

22 WP74004005 Screw, 6-32 X 5/16``   (Replaces: 74004005) 10 Special Order $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

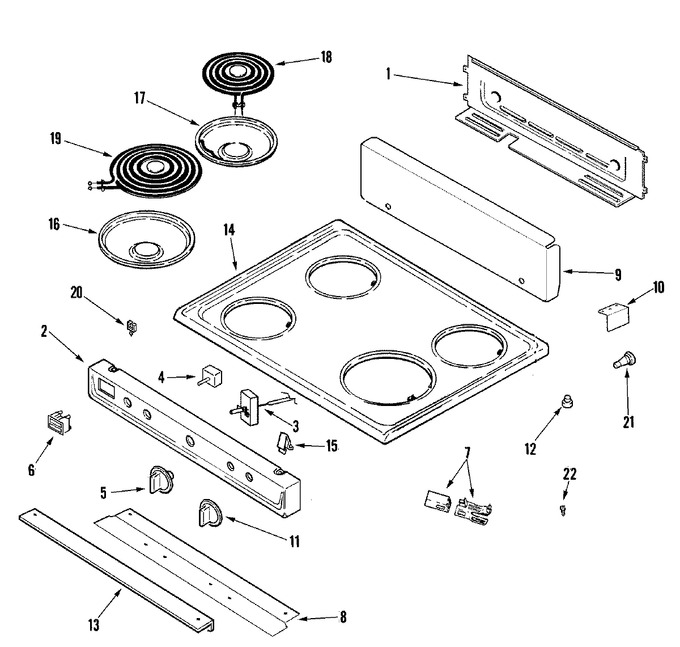

Diagram for MER4110AAH
